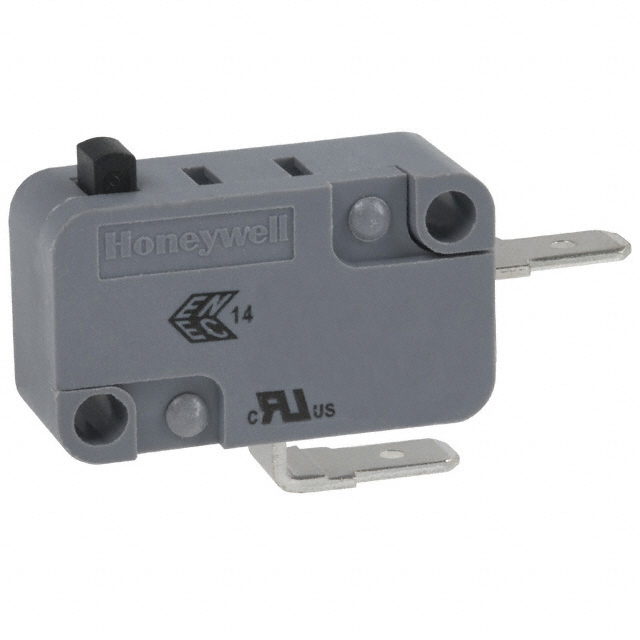

V9-16S23D800
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPST-NO 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
V9-16S23D800
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPST-NO 16A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V9-16S23D800 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 16 A |
| Differential Travel | 0.047 in |
| Differential Travel | 1.2 mm |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 5000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 510 gf |
| Operating Position | 0.567 in |
| Operating Position | 14.4 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.026 in |
| Overtravel | 0.7 mm |
| Pretravel | 0.075 in |
| Pretravel | 1.9 mm |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
V9-16S Series
Switch SPST-NO Chassis Mount
