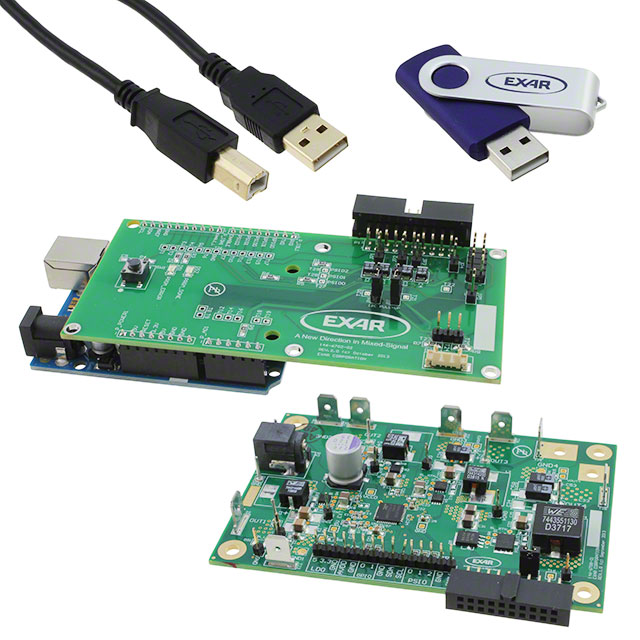

XRP7725EVB-DEMO2KITA
MaxLinear, Inc.
EVAL KIT 4CH BUCK REG
Deep-Dive with AI
Search across all available documentation for this part.
XRP7725EVB-DEMO2KITA
MaxLinear, Inc.
EVAL KIT 4CH BUCK REG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XRP7725EVB-DEMO2KITA |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 10 A, 5 A, 3 A |
| Frequency - Switching | 1.23 MHz |
| Main Purpose | DC/DC, Step Up or Down with LDO |
| Outputs and Type | 4 |
| Outputs and Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Accessories, Board(s) |
| Utilized IC / Part | XRP7725 |
| Voltage - Input [Max] | 25 V |
| Voltage - Input [Min] | 5.5 V |
| Voltage - Output | 1.5 V, 3.3 V, 2.5 V, 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 85.00 | |
Description
General part information
XRP7725 Series
XRP7725 - DC/DC, Step Up or Down with LDO 4, Non-Isolated Outputs Evaluation Board
