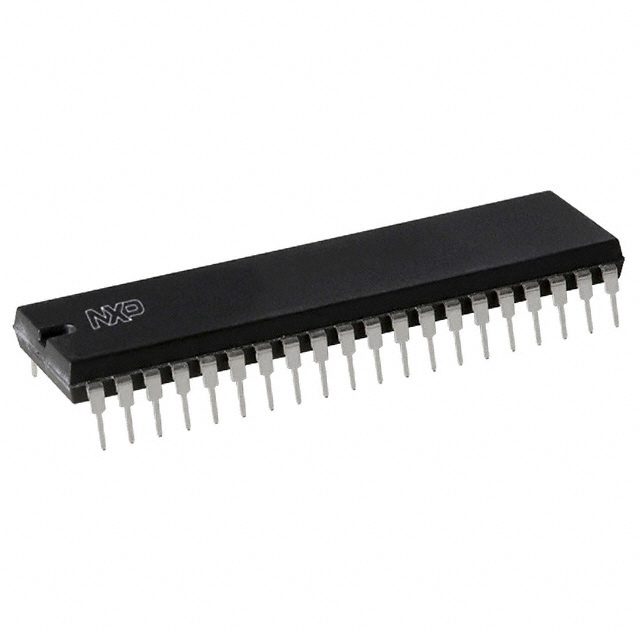

SC26C92C1N,602

Obsolete

Freescale Semiconductor - NXP

IC UART DUAL W/FIFO 40-DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SC26C92C1N,602

Obsolete

Freescale Semiconductor - NXP

IC UART DUAL W/FIFO 40-DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC26C92C1N,602

Data Rate (Max)	1 Mbps
Features	Configurable GPIO, Internal Oscillator, Timer/Counter
Mounting Type	Through Hole
Number of Channels	2
Package / Case	15.24 mm
Package / Case	0.6 in
Package / Case	40-DIP
Supplier Device Package	40-DIP
With Auto Flow Control	True
With False Start Bit Detection	True
With Modem Control	True

SC26 Series

Part	Mounting Type	Supplier Device Package	Data Rate (Max)	Features	Package / Case	Number of Channels	Interface	Supplier Device Package [x]	Supplier Device Package [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case
Freescale Semiconductor - NXP SC26C92A1B,551	Surface Mount	44-PQFP (10x10)	1 Mbps	Configurable GPIO Internal Oscillator Timer/Counter	44-QFP	2
Freescale Semiconductor - NXP SC26C92A1B,528	Surface Mount	44-PQFP (10x10)	1 Mbps	Configurable GPIO Internal Oscillator Timer/Counter	44-QFP	2
Freescale Semiconductor - NXP SC26C92C1A,512	Surface Mount	44-PLCC (16.59x16.59)	1 Mbps	Configurable GPIO Internal Oscillator Timer/Counter	44-LCC (J-Lead)	2
Freescale Semiconductor - NXP SC26C92C1B,528	Surface Mount	44-PQFP (10x10)	1 Mbps	Configurable GPIO Internal Oscillator Timer/Counter	44-QFP	2
Freescale Semiconductor - NXP SC26C562C1A,512	Surface Mount	52-PLCC			52-LCC (J-Lead)		DMA	19.15	19.15	4.5 V	5.5 V
Freescale Semiconductor - NXP SC26C92C1B,557	Surface Mount	44-PQFP (10x10)	1 Mbps	Configurable GPIO Internal Oscillator Timer/Counter	44-QFP	2
Freescale Semiconductor - NXP SC26C92C1A,529	Surface Mount	44-PLCC (16.59x16.59)	1 Mbps	Configurable GPIO Internal Oscillator Timer/Counter	44-LCC (J-Lead)	2
Freescale Semiconductor - NXP SC26C92A1A,529	Surface Mount	44-PLCC (16.59x16.59)	1 Mbps	Configurable GPIO Internal Oscillator Timer/Counter	44-LCC (J-Lead)	2
Freescale Semiconductor - NXP SC26C92C1N,602	Through Hole	40-DIP	1 Mbps	Configurable GPIO Internal Oscillator Timer/Counter	40-DIP	2						15.24 mm	0.6 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SC26 Series

UART IC 2, DUART Channel 8 Byte 40-DIP
