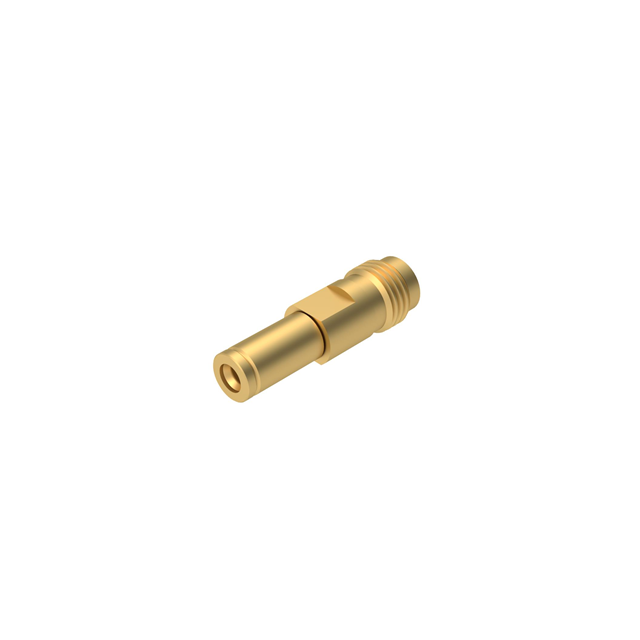

R191564000

Active

Radiall USA, Inc.

SMPM MALE - 2.4 MM FEMALE FULL D

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMPM MALE - 2.4 MM FEMALE FULL D

Technical Specifications

Parameters and characteristics for this part

Part	Convert To (Adapter End)	Center Contact Material	Convert From (Adapter End)	Adapter Type	Body Material	Adapter Series	Center Contact Plating	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Style	Mounting Type	Fastening Type	Impedance	Body Finish	Conversion Type	Adapter Series	Features	Convert To (Adapter End)
Radiall USA, Inc. R191560000	Male Pin MMBX Plug	Beryllium Copper	SMP Jack Female Socket	Plug to Jack	Beryllium Copper	SMP to MMBX	Gold	Polytetrafluoroethylene (PTFE)	155 °C	-55 °C	6000 MHz	Straight	Free Hanging (In-Line)	Snap-On	50 Ohms	Gold	Between Series
Radiall USA, Inc. R191564000		Beryllium Copper	SMPM Plug Male Pin	Plug to Jack	Beryllium Copper	SMPM	Gold	Polyetheretherketone (PEEK)	165 °C	-65 ░C	40 GHz	Straight	Free Hanging (In-Line)	Snap-On Threaded	50 Ohms	Gold	Between Series	2.4 mm	Full Detent	2.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 382.70

General part information

Adapter Coaxial Connector SMPM Plug, Male Pin To 2.4mm (APC-2.4, OS-50) Jack, Female Socket 50 Ohms
