601W-18 R/B

Active

E-Z-Hook

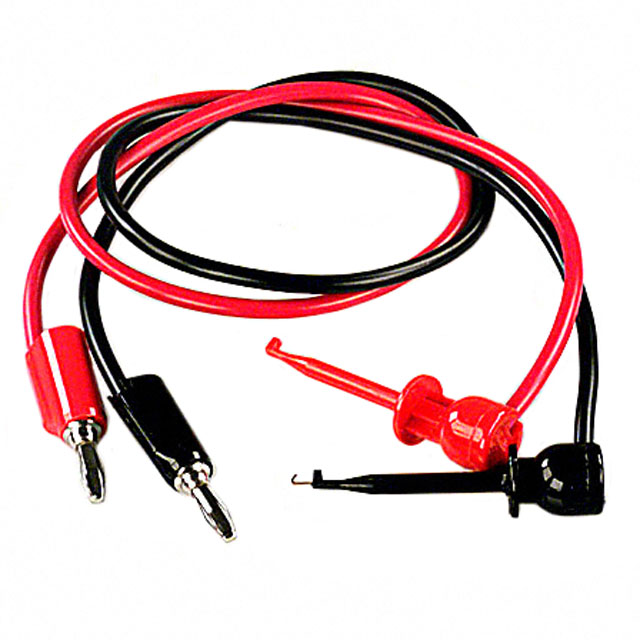

TEST LEAD BANANA/GRABBER 18" 2PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

601W-18 R/B

Active

E-Z-Hook

TEST LEAD BANANA/GRABBER 18" 2PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	601W-18 R/B

1st Connector	Single, Stackable, Banana Plug
2nd Connector	Mini Hook
Cable Length	457.2 mm
Cable Length	18 in
Configuration	Banana to Grabber, Hook
Contents	Black and Red, 2 Leads
Current Rating (Amps)	4 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Front Stacking
Type	Patch Cord
Voltage - Rated	5 kV
Voltage - Rated	5 kV
Wire Gauge	18 AWG

601W Series

Part	2nd Connector	Voltage - Rated	Voltage - Rated	Wire Gauge	Configuration	Stacking Method	Current Rating (Amps)	Material - Insulation	Contents [custom]	Contents	1st Connector	Cable Length	Cable Length	Type	Contents	Contents [custom]
E-Z-Hook 601W-36RED	Mini Hook	5 kV	5 kV	18 AWG	Banana to Grabber Hook	Front Stacking	4 A	Poly-Vinyl Chloride (PVC)	1	Red	Banana Plug Single Stackable	36 in	914.4 mm	Patch Cord
E-Z-Hook 601W-36BLK	Mini Hook	5 kV	5 kV	18 AWG	Banana to Grabber Hook	Front Stacking	4 A	Poly-Vinyl Chloride (PVC)		1 Lead Black	Banana Plug Single Stackable	36 in	914.4 mm	Patch Cord
E-Z-Hook 601W-18BLK	Mini Hook	5 kV	5 kV	18 AWG	Banana to Grabber Hook	Front Stacking	4 A	Poly-Vinyl Chloride (PVC)		1 Lead Black	Banana Plug Single Stackable	18 in	457.2 mm	Patch Cord
E-Z-Hook 601W-60YEL	Mini Hook	5 kV	5 kV	18 AWG	Banana to Grabber Hook	Front Stacking	4 A	Poly-Vinyl Chloride (PVC)		1 Lead Yellow	Banana Plug Single Stackable	5 ft	1524 mm	Patch Cord
E-Z-Hook 601W-18-S	Mini Hook	5 kV	5 kV	18 AWG	Banana to Grabber Hook	Front Stacking	4 A	Poly-Vinyl Chloride (PVC)		Multiple Colors	Banana Plug Single Stackable	18 in	457.2 mm	Patch Cord	10 Leads
E-Z-Hook 601W-60BLU	Mini Hook	5 kV	5 kV	18 AWG	Banana to Grabber Hook	Front Stacking	4 A	Poly-Vinyl Chloride (PVC)		1 Lead Blue	Banana Plug Single Stackable	5 ft	1524 mm	Patch Cord
E-Z-Hook 601W-60GRY	Mini Hook	5 kV	5 kV	18 AWG	Banana to Grabber Hook	Front Stacking	4 A	Poly-Vinyl Chloride (PVC)		Gray	Banana Plug Single Stackable	5 ft	1524 mm	Patch Cord		1
E-Z-Hook 601W-60ORN	Mini Hook	5 kV	5 kV	18 AWG	Banana to Grabber Hook	Front Stacking	4 A	Poly-Vinyl Chloride (PVC)		1 Lead Orange	Banana Plug Single Stackable	5 ft	1524 mm	Patch Cord
E-Z-Hook 601W-18 R/B	Mini Hook	5 kV	5 kV	18 AWG	Banana to Grabber Hook	Front Stacking	4 A	Poly-Vinyl Chloride (PVC)		2 Leads Black and Red	Banana Plug Single Stackable	18 in	457.2 mm	Patch Cord

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.39
		5	$ 15.65
		10	$ 15.34
		25	$ 14.94
		50	$ 14.64
		100	$ 14.35
		250	$ 13.98
		500	$ 13.70

Description

General part information

601W Series

18.0" (457.20mm) Banana Plug, Single, Stackable To Mini Hook Patch Cord 5000V (5kV)
