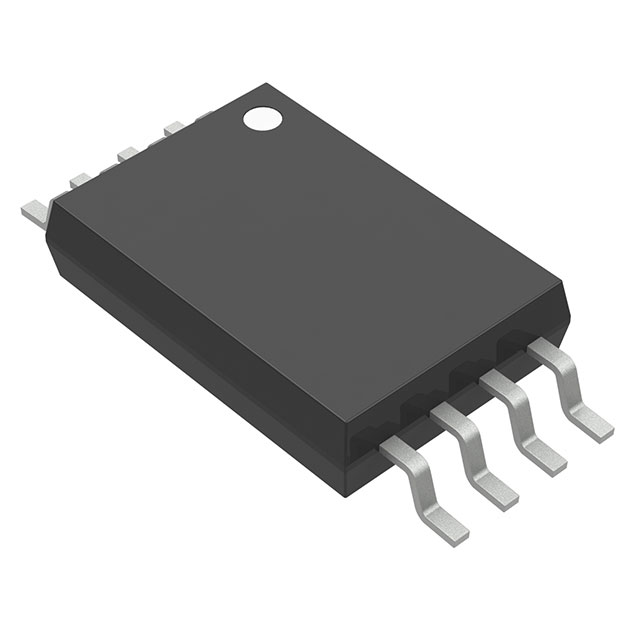

A1363LLUTR-1-T

Active

Allegro MicroSystems

SENSOR HALL ANALOG 8TSSOP

Search across all available documentation for this part.

Active

Allegro MicroSystems

SENSOR HALL ANALOG 8TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	A1363LLUTR-1-T

Axis	Single
Bandwidth	120 kHz
Current - Output (Max) [Max]	10 mA
Current - Supply (Max) [Max]	15 mA
Features	Temperature Compensated, Programmable
Mounting Type	Surface Mount
Output Type	Analog Voltage
Package / Case	8-TSSOP
Package / Case [custom]	0.173 "
Package / Case [custom]	4.4 mm
Supplier Device Package	8-TSSOP
Technology	Hall Effect
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Axis	Output Type	Features	Mounting Type	Current - Supply (Max) [Max]	Technology	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Output (Max) [Max]	Bandwidth	Package / Case	Package / Case [custom]	Package / Case [custom]
Allegro MicroSystems A1363LLUTR-1-T	Single	Analog Voltage	Programmable Temperature Compensated	Surface Mount	15 mA	Hall Effect	8-TSSOP	4.5 V	5.5 V	10 mA	120 kHz	8-TSSOP	0.173 "	4.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.80
	Digi-Reel®	1	$ 3.80
	Tape & Reel (TR)	12000	$ 1.79

General part information

Hall Effect Sensor Single Axis 8-TSSOP
