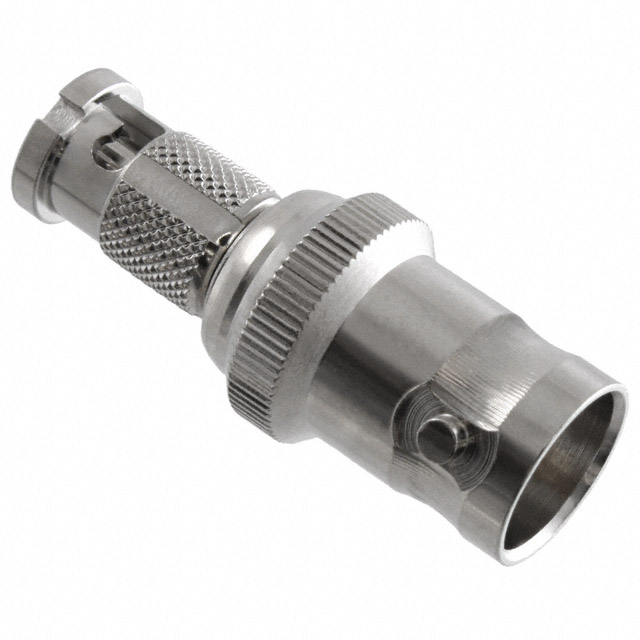

APH-BNCJ-HDBNCP
ActiveAmphenol RF
CONN ADAPT HDBNC PLUG - BNC JACK
Deep-Dive with AI
Search across all available documentation for this part.
APH-BNCJ-HDBNCP
ActiveAmphenol RF
CONN ADAPT HDBNC PLUG - BNC JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | APH-BNCJ-HDBNCP |
|---|---|
| Adapter Series | HD to BNC, BNC |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | BNC HD Plug, Male Pin |
| Convert To (Adapter End) | Female Socket, BNC Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 3 GHz |
| Impedance | 75 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.02 | |
| 10 | $ 37.67 | |||
| 25 | $ 36.05 | |||
| 50 | $ 34.88 | |||
| 100 | $ 33.72 | |||
| 250 | $ 31.86 | |||
Description
General part information
APH-BNCJ Series
Adapter Coaxial Connector BNC HD Plug, Male Pin To BNC Jack, Female Socket 75 Ohms
