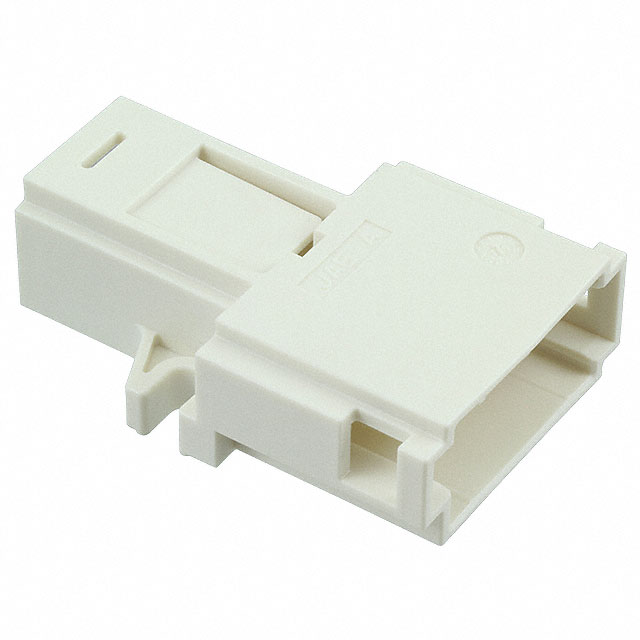

DW05P01CZZ2

Active

JAE Electronics

CONN PLUG HSG 1POS IVORY

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG HSG 1POS IVORY

Technical Specifications

Parameters and characteristics for this part

Specification	DW05P01CZZ2

Color	Ivory
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

Part	Contact Termination	Pin or Socket	Wire Gauge	Contact Finish	Insulation Material	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Fastening Type	Connector Type	Mounting Type	Color	Note
JAE Electronics DW05P01CAG1	Crimp	Pin	2 AWG	Gold
JAE Electronics DW05P01CZZ2	Crimp				Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	85 °C	-40 °C	1	Latch Holder	Plug	Free Hanging (In-Line)	Ivory	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	99	$ 4.89

General part information

1 Rectangular Connectors - Housings Plug Ivory
