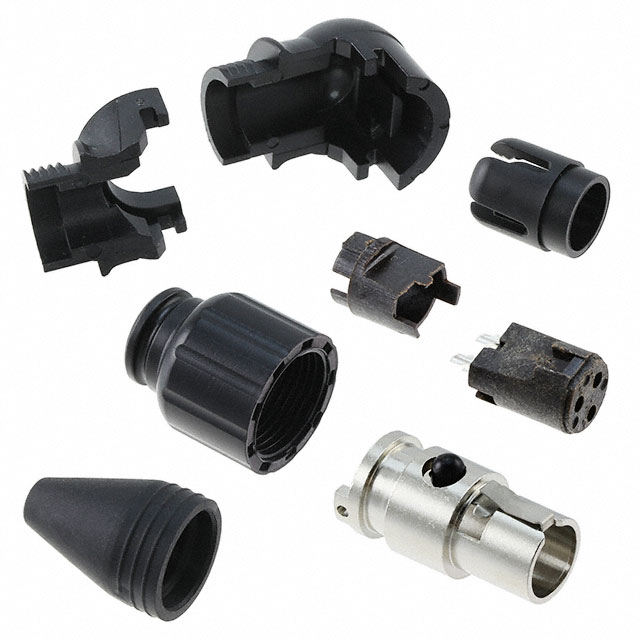

TARA3FX

Active

Switchcraft Inc.

CONN PLUG FMALE MINI XLR 3P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE MINI XLR 3P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TARA3FX

Applications	Communication Systems, Medical, Audio, Industrial
Cable Opening [Max] [diameter]	3.81 mm
Cable Opening [Max] [diameter]	0.15 in
Cable Opening [Min] [diameter]	0.12 in
Cable Opening [Min] [diameter]	3.05 mm
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Termination	Solder
Voltage Rating	125 VAC

Part	Connector Type	Primary Material	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Current Rating (Amps)	Applications	Mounting Type	Fastening Type	Termination	Shell Finish	Shell Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Finish - Mating	Shell Size - Insert	Orientation	Voltage Rating	Contact Material
Switchcraft Inc. TARA3FX	Female Sockets Plug	Metal	0.12 in	3.05 mm	3.81 mm	0.15 in	4 A	Audio Communication Systems Industrial Medical	Free Hanging (In-Line) Right Angle	Latch Lock	Solder	Nickel	Copper Alloy	Backshell Cable Clamp Ground Strain Relief	85 °C	-55 °C	Black Silver	Silver	Mini XLR	Keyed	125 VAC	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Solder
