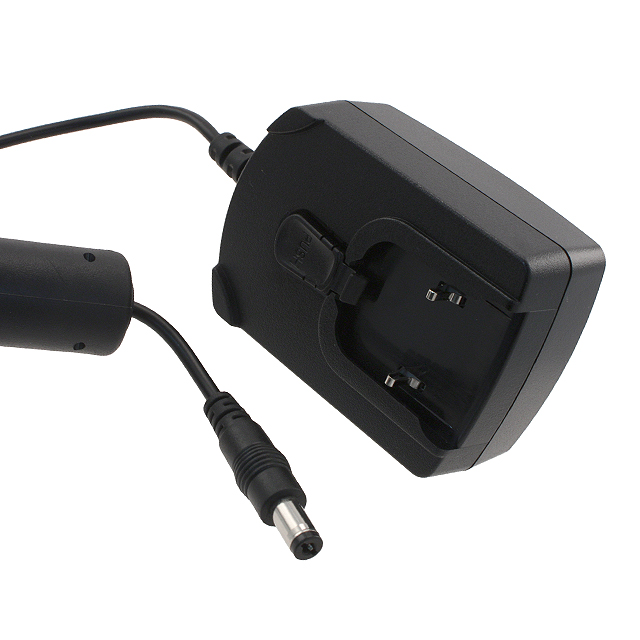

PSAA20R-050L6

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 20W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PSAA20R-050L6

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 20W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PSAA20R-050L6

Applications	ITE (Commercial)
Approval Agency	CE, CB, cULus
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	4 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption	10 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	20 W
Region Utilized	International
Size / Dimension [x]	71.7 mm
Size / Dimension [x]	2.82 "
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	39.1 mm
Size / Dimension [z]	1.54 "
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V
Weight	180.08 g
Weight	0.397 lb

PSAA20R Series

Part	Efficiency	Region Utilized	Form	No Load Power Consumption	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Current - Output (Max) [Max]	Power (Watts)	Operating Temperature [Max]	Input Connector	Weight	Weight	Output Connector [diameter]	Output Connector [x]	Output Connector	Input Type	Cord Length	Cord Length	Polarization	Applications
Phihong USA PSAA20R-120L6-R-CR1	Level VI	International	Wall Mount (Class II)	10 mW	71.7 mm	39.1 mm	2.82 "	1.97 "	50 mm	1.54 "	12 V	60950-1	90 VAC	264 VAC	AS/NZS BSMI cULus IEC PSE	1.67 A	20 W	40 °C	Multi-Blade	180.08 g	0.397 lb	2.1 mm 5.5 mm	10 mm	Barrel Plug R/A	Multi-Blade (Sold Separately)	1.5 m	59 in	Positive Center	ITE (Commercial)
Phihong USA PSAA20R-050L6-R-CR1	Level VI	International	Wall Mount (Class II)	10 mW	71.7 mm	39.1 mm	2.82 "	1.97 "	50 mm	1.54 "	5 V	60950-1 62368-1 GB/T9254-2008 GB17625.1-2012 GB4943.1-2011	90 VAC	264 VAC	AS/NZS CCC cULus IEC	4 A	20 W	40 °C	Multi-Blade	180.08 g	0.397 lb	2.1 mm 5.5 mm	10 mm	Barrel Plug R/A	Multi-Blade (Sold Separately)	1.5 m	59 in	Positive Center	ITE (Commercial)
Phihong USA PSAA20R-050L6	Level VI	International	Wall Mount (Class II)	10 mW	71.7 mm	39.1 mm	2.82 "	1.97 "	50 mm	1.54 "	5 V		90 VAC	264 VAC	CB CE cULus	4 A	20 W	40 °C	Multi-Blade	180.08 g	0.397 lb	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Multi-Blade (Sold Separately)	1.5 m	59 in	Positive Center	ITE (Commercial)
Phihong USA PSAA20R-240L6-R-CR1	Level VI	International	Wall Mount (Class II)	10 mW	71.7 mm	39.1 mm	2.82 "	1.97 "	50 mm	1.54 "	24 V	60950-1	90 VAC	264 VAC	AS/NZS cULus IEC	830 mA	20 W	40 °C	Multi-Blade	180.08 g	0.397 lb	2.1 mm 5.5 mm	10 mm	Barrel Plug R/A	Multi-Blade (Sold Separately)	1.5 m	59 in	Positive Center	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.37
		10	$ 14.28
		25	$ 13.75
		50	$ 13.43
		100	$ 13.30
		250	$ 12.94
		500	$ 12.59

Description

General part information

PSAA20R Series

5V 20 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
