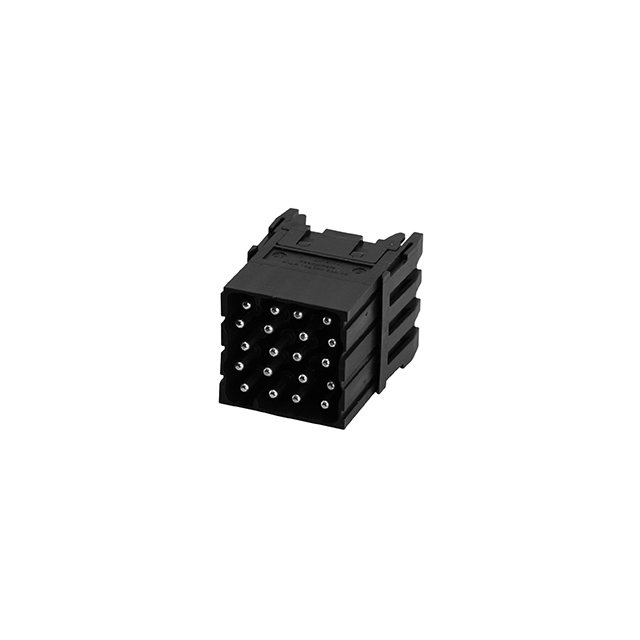

C146 10A020 600 15

Active

Amphenol Sine Systems Corp

PIN MODULE 20 POLE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

PIN MODULE 20 POLE

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10A020 600 15

Color	Black
Connector Type	Module without Contacts
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Number of Positions	20
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	500 V

Part	Number of Positions	Color	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Current Rating (Amps)	Gender	Housing Material	Termination Style	Material Flammability Rating
Amphenol Sine Systems Corp C146 10A020 600 15	20	Black	500 V	125 °C	-40 °C	Module without Contacts	16 A	Male	Polyamide (PA) Nylon Glass Filled	Crimp	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Male Module without Contacts Black 20 Position Crimp
