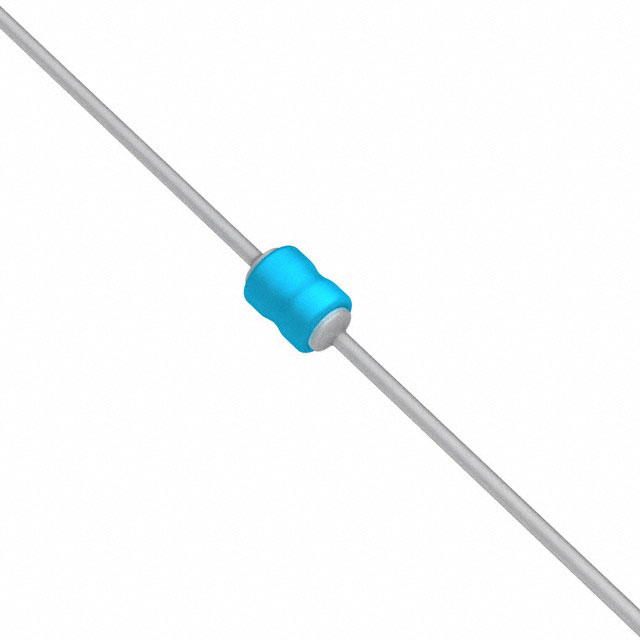

1N6113A

Unknown

Semtech Corporation

TVS DIODE 15.2VWM 27.7VC AXIAL

Search across all available documentation for this part.

Unknown

Semtech Corporation

TVS DIODE 15.2VWM 27.7VC AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	1N6113A

Applications	General Purpose
Bidirectional Channels [custom]	1
Current - Peak Pulse (10/1000µs)	18 A
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-65 °C
Package / Case	Axial
Power - Peak Pulse	500 W
Power Line Protection	False
Supplier Device Package	Axial
Type	Zener
Voltage - Breakdown (Min) [Min]	19 V
Voltage - Clamping (Max) @ Ipp [Max]	27.7 V
Voltage - Reverse Standoff (Typ)	15.2 V

Part	Mounting Type	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Reverse Standoff (Typ)	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Package / Case	Type	Power - Peak Pulse	Applications	Power Line Protection	Bidirectional Channels [custom]	Supplier Device Package
Semtech Corporation 1N6113A	Through Hole	27.7 V	175 ░C	-65 °C	15.2 V	19 V	18 A	Axial	Zener	500 W	General Purpose		1	Axial
Semtech Corporation 1N6113US	Surface Mount	29 V			15.2 V	18 V	17.2 A	SQ-MELF	Zener	500 W	General Purpose		1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.58

General part information

27.7V Clamp 18A Ipp Tvs Diode Through Hole Axial

Technical documentation and resources

No documents available
