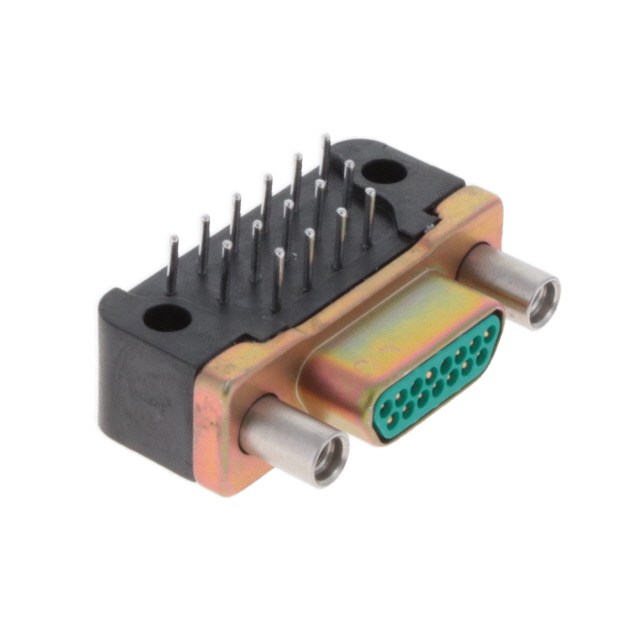

DCCM15PBSP

Active

Cinch Connectivity Solutions Trompeter

CONN MICRO-D PLUG 15P VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DCCM15PBSP

Active

Cinch Connectivity Solutions Trompeter

CONN MICRO-D PLUG 15P VERT SLDR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DCCM15PBSP

Connector Style	Micro-D, D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Diallyl Phthalate (DAP), Glass Filled
Features	Shielded
Flange Feature	Female Screwlock, Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Yellow Chromate Plated Cadmium, Aluminum Alloy
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05
Termination	Solder

DCCM15 Series

Part	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Flange Feature	Mounting Type	Number of Rows	Termination	Features	Dielectric Material	Number of Positions	Backset Spacing	Backset Spacing	Shell Material, Finish	Contact Finish	Contact Material	Connector Style	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Current Rating (Amps)	1st Connector	Color	2nd Connector	Type	Length [x]	Length [x]
Cinch Connectivity Solutions Trompeter DCCM15PCBRP	Male Pins Plug	50 µin	1.27 µm	135 °C	-55 °C	UL94 V-0	Female Screwlock Mating Side	Through Hole Right Angle	2	Solder	Shielded	Diallyl Phthalate (DAP) Glass Filled	15	3.3 mm	0.13 in	Aluminum Alloy Yellow Chromate Plated Cadmium	Gold	Copper Alloy	D-Type Micro-D	Signal	0.043	0.05	3 A
Cinch Connectivity Solutions Trompeter DCCM15PCBRPN	Male Pins Plug	50 µin	1.27 µm	135 °C	-55 °C	UL94 V-0	Female Screwlock Mating Side	Through Hole Right Angle	2	Solder	Shielded	Diallyl Phthalate (DAP) Glass Filled	15	3.3 mm	0.13 in	Aluminum Alloy Electroless Nickel Plated	Gold	Copper Alloy	D-Type Micro-D	Signal	0.043	0.05	3 A
Cinch Connectivity Solutions Trompeter DCCM15PSBN	Male Pins Plug	50 µin	1.27 µm	135 °C	-55 °C	UL94 V-0			2		Shielded	Diallyl Phthalate (DAP) Glass Filled	15			Aluminum Alloy Electroless Nickel Plated	Gold	Copper Alloy	D-Type Micro-D	Signal	0.043	0.05	3 A
Cinch Connectivity Solutions Trompeter DCCM15SBSP	Receptacle Female Sockets	50 µin	1.27 µm	135 °C	-55 °C	UL94 V-0	Female Screwlock Mating Side	Through Hole	2	Solder	Shielded	Diallyl Phthalate (DAP) Glass Filled	15			Aluminum Alloy Yellow Chromate Plated Cadmium	Gold	Copper Alloy	D-Type Micro-D	Signal	0.043	0.05	3 A
Cinch Connectivity Solutions Trompeter DCCM15PSB	Male Pins Plug	50 µin	1.27 µm	135 °C	-55 °C	UL94 V-0			2		Shielded	Diallyl Phthalate (DAP) Glass Filled	15			Aluminum Alloy Yellow Chromate Plated Cadmium	Gold	Copper Alloy	D-Type Micro-D	Signal	0.043	0.05	3 A
Cinch Connectivity Solutions Trompeter DCCM15S6E5-36.0BN		50 µin	1.27 µm										15				Gold							Female Sockets Receptacle	Individual Multiple	Individual Wire Leads	D-Type Micro-D	3 ft	914.4 mm
Cinch Connectivity Solutions Trompeter DCCM15SSBN	Receptacle Female Sockets	50 µin	1.27 µm	135 °C	-55 °C	UL94 V-0			2		Shielded	Diallyl Phthalate (DAP) Glass Filled	15			Aluminum Alloy Electroless Nickel Plated	Gold	Copper Alloy	D-Type Micro-D	Signal	0.043	0.05	3 A
Cinch Connectivity Solutions Trompeter DCCM15SSB	Receptacle Female Sockets	50 µin	1.27 µm	135 °C	-55 °C	UL94 V-0			2		Shielded	Diallyl Phthalate (DAP) Glass Filled	15			Aluminum Alloy Yellow Chromate Plated Cadmium	Gold	Copper Alloy	D-Type Micro-D	Signal	0.043	0.05	3 A
Cinch Connectivity Solutions Trompeter DCCM15PBSP	Male Pins Plug	50 µin	1.27 µm	135 °C	-55 °C	UL94 V-0	Female Screwlock Mating Side	Through Hole	2	Solder	Shielded	Diallyl Phthalate (DAP) Glass Filled	15			Aluminum Alloy Yellow Chromate Plated Cadmium	Gold	Copper Alloy	D-Type Micro-D	Signal	0.043	0.05	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 125.25
		10	$ 97.63
		25	$ 88.90
		50	$ 83.01
		100	$ 77.69

Description

General part information

DCCM15 Series

15 Position D-Type, Micro-D Plug, Male Pins Connector
