AOZ8831ADI-05

Alpha & Omega Semiconductor Inc.

TVS DIODE 5VWM 19.5VC 2DFN

Search across all available documentation for this part.

Alpha & Omega Semiconductor Inc.

TVS DIODE 5VWM 19.5VC 2DFN

Technical Specifications

Parameters and characteristics for this part

Specification	AOZ8831ADI-05

Applications	General Purpose
Bidirectional Channels [custom]	1
Capacitance @ Frequency	0.3 pF
Current - Peak Pulse (10/1000µs)	2.5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C

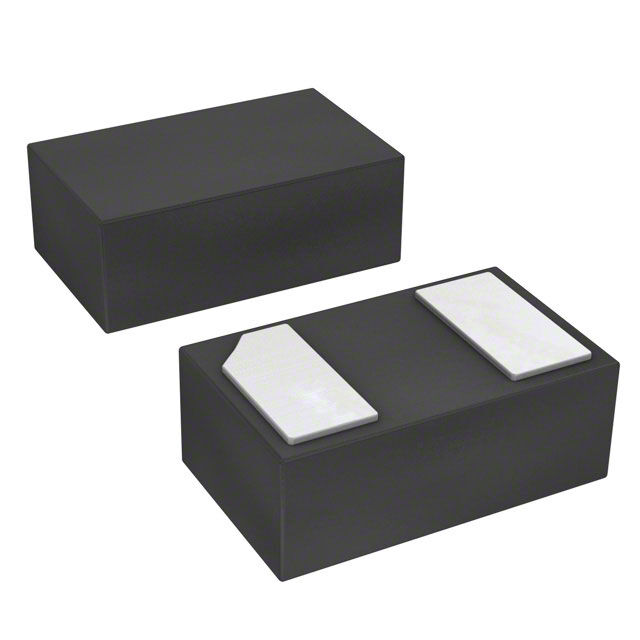

Package / Case	2-UDFN
Power - Peak Pulse	40 W
Power Line Protection	False
Type	Zener
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp [Max]	19.5 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Bidirectional Channels [custom]	Power - Peak Pulse	Type	Applications	Mounting Type	Package / Case	Current - Peak Pulse (10/1000µs)	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ)	Power Line Protection
Alpha & Omega Semiconductor Inc. AOZ8831DT-24	48 V	26 V	1	60 W	Zener	General Purpose	Surface Mount	2-XDFN	1.2 A	-40 °C	125 ¯C	0.35 pF	24 V
Alpha & Omega Semiconductor Inc. AOZ8831ADI-05	19.5 V	6 V	1	40 W	Zener	General Purpose	Surface Mount	2-UDFN	2.5 A	-40 °C	125 ¯C	0.3 pF	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19.5V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount 2-DFN (1x0.6)
