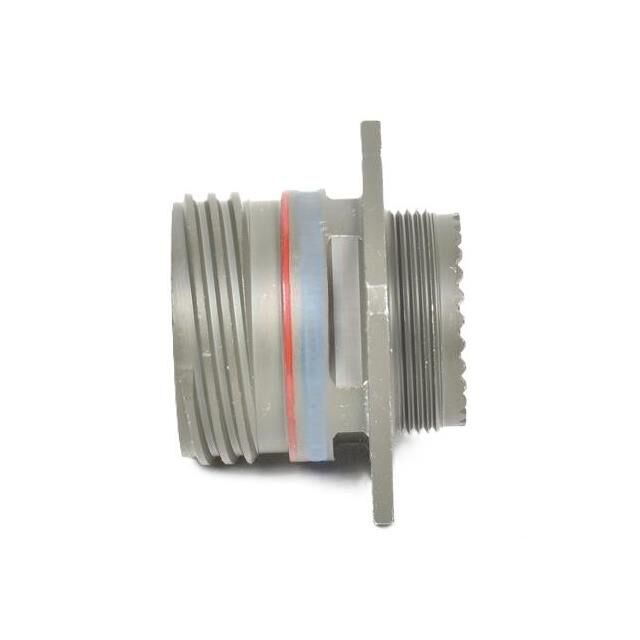

D38999/20LE2SAL

Active

Corsair

D38999 SER III RECEPTACLE

Search across all available documentation for this part.

Active

Corsair

D38999 SER III RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Mounting Feature	Primary Material	Orientation	Shell Size, MIL	Note	Contact Type	Type	Number of Positions	Material Flammability Rating	Insert Material	Ingress Protection	Includes	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]
Corsair D38999/20LE99PAL	Receptacle Housing	Flange	Metal	A	E	Contacts Not Included	Crimp	For Female Sockets	23
Corsair D38999/20LE99SAL
Corsair D38999/20LE8SAL	Receptacle Housing	Flange	Metal	A	E	Contacts Not Included	Crimp	For Female Sockets	8
Corsair D38999/20LE26SAL	Receptacle Housing	Flange	Metal	A	E	Contacts Not Included	Crimp	For Female Sockets	26
Corsair D38999/20LE35SNL	Receptacle Housing	Flange	Metal	N	E	Contacts Not Included	Crimp	For Female Sockets	6
Corsair D38999/20LE35SAL	Receptacle Housing	Flange	Metal	A	E	Contacts Not Included	Crimp	For Female Sockets	6
Corsair D38999/20LE26SNL	Receptacle Housing	Flange	Metal	N	E	Contacts Not Included	Crimp	For Female Sockets	26	UL94 V-0	Thermoplastic	Waterproof	1 pc - 1 Insert Shell	Silver	-65 ░C	200 °C
Corsair D38999/20LE99SNL
Corsair D38999/20LE2SAL	Receptacle Housing	Flange	Metal	A	E	Contacts Not Included	Crimp	For Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Position Circular Connector Receptacle Housing Panel Mount
