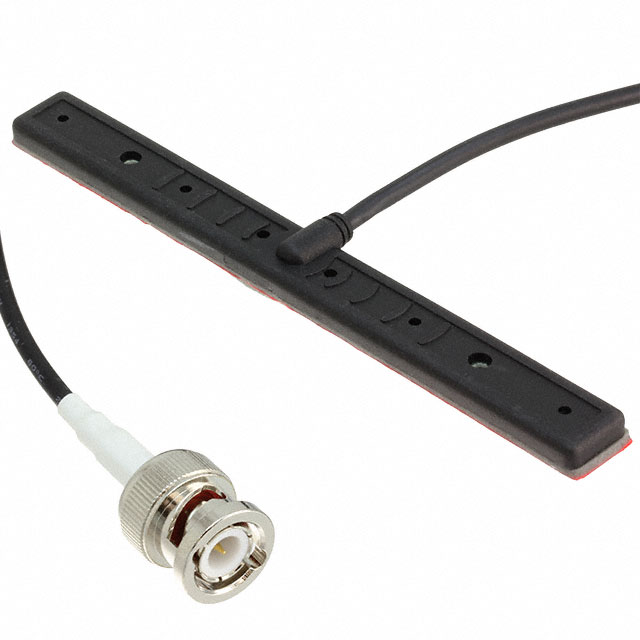

ALPHA1A/3M/BNCM/S/S/11

Active

Siretta Ltd

RF ANT 868/900MHZ FLAT BAR BNC

Search across all available documentation for this part.

Active

Siretta Ltd

RF ANT 868/900MHZ FLAT BAR BNC

Technical Specifications

Parameters and characteristics for this part

Specification	ALPHA1A/3M/BNCM/S/S/11

Antenna Type	Flat Bar
Applications	Zigbee™, Bluetooth, GPRS, WLAN, GSM, UMTS
Frequency (Center/Band)	915 MHz, 2.4 GHz, 1.8 GHz, 2.1 GHz, 1.9 GHz, 950 MHz, 900 MHz, 868 MHz
Frequency Group	Wide Band
Gain	3.8 dBi
Height (Max)	4 mm
Height (Max) [Max] [z]	0.157 in
Mounting Type	Adhesive
Number of Bands	8
RF Family/Standard	Cellular, Bluetooth, 802.15.4, WiFi
Termination	BNC Male
VSWR	2

Part	VSWR	Height (Max)	Height (Max) [Max] [z]	Frequency (Center/Band)	RF Family/Standard	Applications	Mounting Type	Number of Bands	Antenna Type	Gain	Frequency Group	Termination
Siretta Ltd ALPHA1A/2.5M/SMAM/S/S/11	2	4 mm	0.157 in	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 868 MHz 900 MHz 915 MHz 950 MHz	802.15.4 Bluetooth Cellular WiFi	Bluetooth GPRS GSM UMTS WLAN Zigbee™	Adhesive	8	Flat Bar	3.8 dBi	Wide Band
Siretta Ltd ALPHA1A/1M/SMAM/S/S/11	2	4 mm	0.157 in	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 868 MHz 900 MHz 915 MHz 950 MHz	802.15.4 Bluetooth Cellular WiFi	Bluetooth GPRS GSM UMTS WLAN Zigbee™	Adhesive	8	Flat Bar	3.8 dBi	Wide Band
Siretta Ltd ALPHA1A/3M/BNCM/S/S/11	2	4 mm	0.157 in	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 868 MHz 900 MHz 915 MHz 950 MHz	802.15.4 Bluetooth Cellular WiFi	Bluetooth GPRS GSM UMTS WLAN Zigbee™	Adhesive	8	Flat Bar	3.8 dBi	Wide Band	BNC Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 19.45

General part information

RF ANTENNA Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™ Flat Bar BNC Male Adhesive
