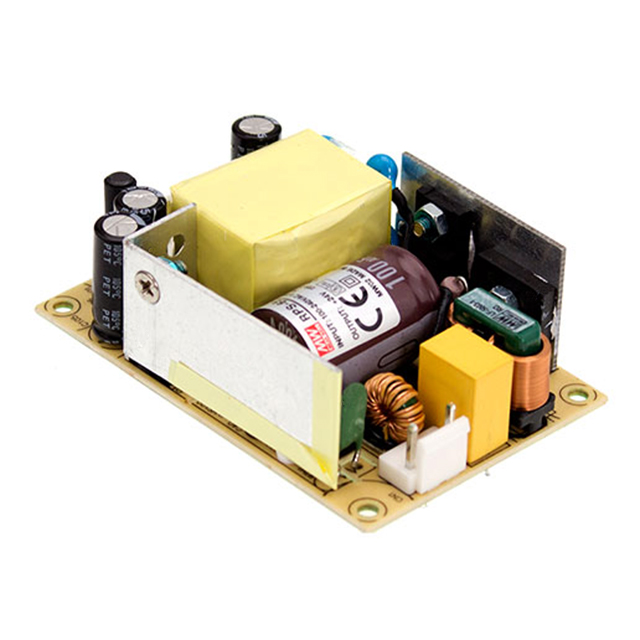

RPS-45-48
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 48V 45W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RPS-45-48
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 48V 45W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RPS-45-48 |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 940 mA |
| Efficiency | 91 % |
| Features | Adjustable Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Size / Dimension [x] | 76.2 mm |
| Size / Dimension [x] | 3 " |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 24 mm |
| Size / Dimension [z] | 24.13 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 16.44 | |
| 5 | $ 15.49 | |||
| 10 | $ 15.10 | |||
| 25 | $ 14.59 | |||
| 40 | $ 14.34 | |||
| 80 | $ 13.98 | |||
| 230 | $ 13.44 | |||
| 440 | $ 13.12 | |||
Description
General part information
RPS-45 Series
Open Frame AC DC Converters 1 Output 48V 80 ~ 264 VAC Input
