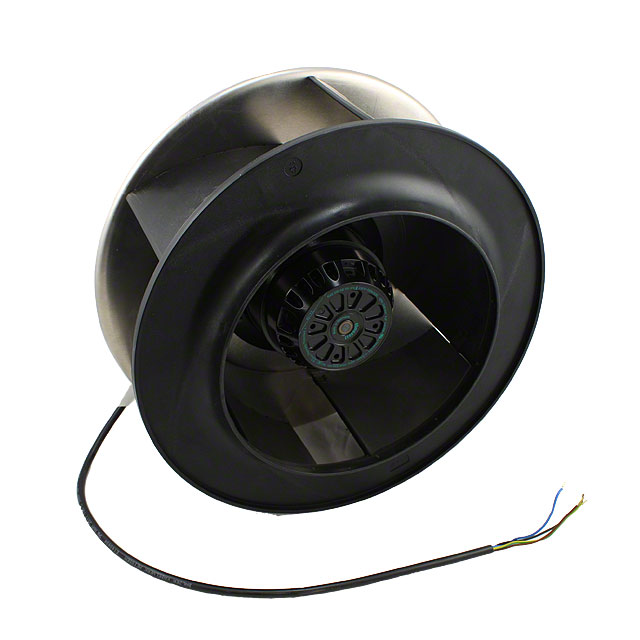

R4E310-AE05-17
Obsoleteebm-papst Inc.
FAN IMP MTRZD 318X154MM 230VAC
Deep-Dive with AI
Search across all available documentation for this part.
R4E310-AE05-17
Obsoleteebm-papst Inc.
FAN IMP MTRZD 318X154MM 230VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R4E310-AE05-17 |
|---|---|
| Air Flow | 35.42 m³/min |
| Air Flow | 1265 CFM |
| Approval Agency | CSA, CCC, UL |
| Bearing Type | Ball |
| Fan Type | Motorized Impellers |
| Features | Capacitor |
| Material - Blade | Polyamide (PA), Nylon |
| Noise | 68 dB |
| Power (Watts) | 165 W |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 318 mm |
| Termination | 2 Wire Leads |
| Voltage - Rated | 230 VAC |
| Weight | 3.6 kg |
| Weight | 8 lbs |
| Width [y] | 154 mm |
R4E310 Series
| Part | Voltage - Rated | Fan Type | Size / Dimension [diameter] | Size / Dimension | Ingress Protection | Width [y] | Features | Current Rating (Amps) | Bearing Type | Material - Blade | Operating Temperature | Operating Temperature | RPM | Power (Watts) | Termination | Air Flow | Air Flow | Weight | Weight | Noise | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ebm-papst Inc. | 230 VAC | Motorized Impellers | 318 mm | Round | IP44 | 154 mm | Capacitor Thermal Overload Protector (TOP) | 0.62 A | Ball | Polyamide (PA66) Nylon 6/6 | 55 °C | 131 °F | 1600 RPM | 140 W | 2 Wire Leads | ||||||||||
ebm-papst Inc. | 277 VAC | Motorized Impellers | 318 mm | Round | 123 mm | Capacitor | Ball | ||||||||||||||||||
ebm-papst Inc. | 115 VAC | Motorized Impellers | 318 mm | Round | 154 mm | Capacitor | Ball | Aluminum | 1700 RPM | 225 W | 2 Wire Leads | 1430 CFM | 40.04 mł/min | 4.4 kg | 9.7 lbs | 65 dB | |||||||||
ebm-papst Inc. | 277 VAC | Motorized Impellers | 318 mm | Round | IP44 | 123 mm | Capacitor Thermal Overload Protector (TOP) | 610 mA | Ball | Aluminum | 1730 RPM | 165 W | 4 Wire Leads with Splice Terminals | 1177 CFM | 32.96 m³/min | CSA UL | 50 °C | -25 °C | -25 °C | 50 °C | |||||
ebm-papst Inc. | 115 VAC | Motorized Impellers | 318 mm | Round | IP44 | 154 mm | Capacitor Thermal Overload Protector (TOP) | 1.48 A | Ball | Aluminum | 1550 RPM | 170 W | 4 Wire Leads with Splice Terminals | CSA UL | 50 °C | -25 °C | -25 °C | 50 °C | |||||||
ebm-papst Inc. | 115 VAC | 3 Phase Motorized Impellers | 318 mm | Round | IP44 | Capacitor Thermal Overload Protection (TOP) | 1.5 A | Ball | Aluminum | 1720 RPM | 155 W | 4 Wire Leads with Splice Terminals | CSA UL | 65 °C | -25 °C | -25 °C | 65 °C | ||||||||
ebm-papst Inc. | 230 VAC | Motorized Impellers | 318 mm | Round | 154 mm | Capacitor | Ball | Nylon Polyamide (PA) | 165 W | 2 Wire Leads | 1265 CFM | 35.42 m³/min | 3.6 kg | 8 lbs | 68 dB | CCC CSA UL |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
R4E310 Series
Fan Motorized Impellers 230VAC Round - 318mm Dia Ball 1265.0 CFM (35.42m³/min) 2 Wire Leads
