0010181090

Active

Molex

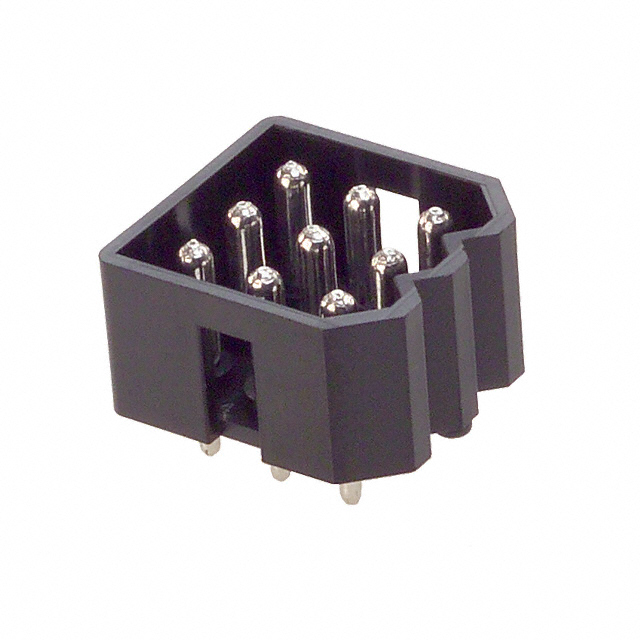

CONN HEADER VERT 9POS 5.03MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0010181090

Active

Molex

CONN HEADER VERT 9POS 5.03MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0010181090

Applications	Telecommunications, General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Length - Post	4.32 mm
Contact Length - Post	0.17 in
Contact Material	Cartridge Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Latch Lock
Features	Board Guide
Insulation Color	Black
Insulation Height	10.7 mm
Insulation Height [z]	0.421 in
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	3
Pitch - Mating	5.03 mm
Pitch - Mating	0.198 in
Row Spacing - Mating	0.198 in
Row Spacing - Mating	5.03 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

001018 Series

Part	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Material	Contact Shape	Contact Finish - Post	Termination	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Style	Number of Rows	Contact Material	Features	Fastening Type	Contact Type	Applications	Insulation Height [z]	Insulation Height	Connector Type	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid)	Pitch - Post	Pitch - Post	Type	Contact Material - Mating	Contact Material - Post [custom]	Termination Post Length	Termination Post Length	Shrouding
Molex 0010181091	250 VDC	1.27 µm	50 µin	Black	-40 °C	105 ░C	All	Polyester	Circular	Tin	Solder	0.198 in	5.03 mm	UL94 V-0	Board to Board Cable	3	Phosphor Bronze	Board Guide	Latch Holder	Female Socket	General Purpose Telecommunications	0.421 in	10.7 mm	Header	5 A	4.32 mm	0.17 in	9	1.27 µm	50 µin	Through Hole	5.03 mm	0.198 in
Molex 0010182031		2.54 µm	100 µin							Tin	Solder							Closed Frame													Through Hole	2.54 mm	0.1 in	3	2.54 mm	0.1 in	Transistor TO-220	Brass	Brass	0.135 in	3.43 mm
Molex 0010181090				Black			All	Polyester	Circular	Tin	Solder	0.198 in	5.03 mm	UL94 V-0	Board to Board Cable	3	Cartridge Brass	Board Guide	Latch Lock	Male Pin	General Purpose Telecommunications	0.421 in	10.7 mm	Header		4.32 mm	0.17 in	9	5.08 µm	200 µin	Through Hole	5.03 mm	0.198 in									Shrouded - 4 Wall

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.45
		10	$ 3.41
		100	$ 2.72
		500	$ 2.38
		1000	$ 2.27

Description

General part information

001018 Series

Connector Header Through Hole 9 position 0.198" (5.03mm)
