PWD-5520-02-SMA-79

Active

Cinch Connectivity Solutions Midwest Microwave

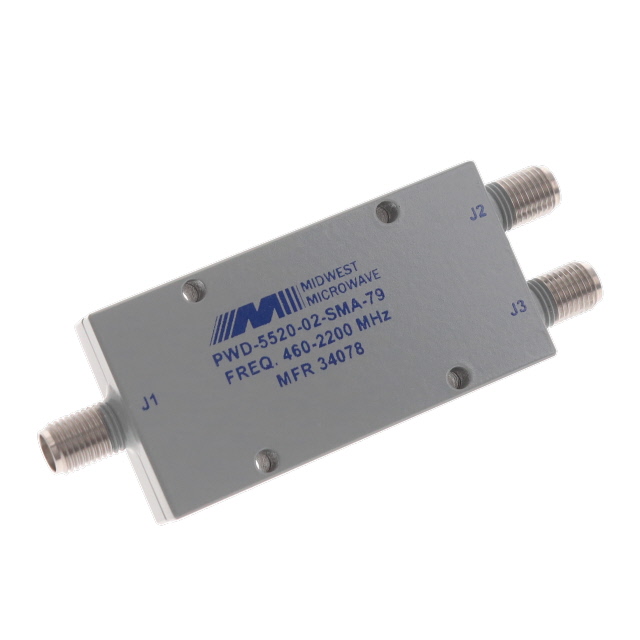

RF POWER DVDR 500MHZ-2GHZ MODULE

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Midwest Microwave

RF POWER DVDR 500MHZ-2GHZ MODULE

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Insertion Loss	Specifications [Min]	Package / Case	Frequency [Min]	Frequency [Max]	Size / Dimension [z]	Size / Dimension [z]
Cinch Connectivity Solutions Midwest Microwave PWD-5522-04-NNN-79	76.2 mm	50.1 mm	3 "	2 in	1 dB	18 dB	Module	2 GHz	8 GHz
Cinch Connectivity Solutions Midwest Microwave PWD-5526-02-SMA-79	25.4 mm	25.4 mm	1 in	25.4 mm	0.5 dB	18 dB	Module	6 GHz	18 GHz
Cinch Connectivity Solutions Midwest Microwave PWD-5532-03-SMA-79	63.5 mm	19.1 mm	63.5 mm	0.75 in	1 dB	20 dB	Module	2 GHz	18 GHz	9.7 mm	0.38 in
Cinch Connectivity Solutions Midwest Microwave PWD-5532-08-SMA-79	116.8 mm	101.6 mm	4.6 "	4 "	0.7 dB	15 dB	Module	2 GHz	18 GHz
Cinch Connectivity Solutions Midwest Microwave PWD-5530-08-SMA-79	132.1 mm	101.6 mm	5.2 in	4 "	1 dB	15 dB	Module	500 MHz	18 GHz
Cinch Connectivity Solutions Midwest Microwave PWD-5520-08-SMA-79	76.2 mm	101.6 mm	3 "	4 "	1 dB	15 dB	Module	500 MHz	2 GHz
Cinch Connectivity Solutions Midwest Microwave PWD-5536-04-29M-79	50.8 mm	33.02 mm	2 in	1.3 in	2.6 dB	13 dB	Module	6 GHz	40 GHz	9.65 mm	0.38 in
Cinch Connectivity Solutions Midwest Microwave PWD-5532-03-TNC-79	67.56 mm	25.4 mm	2.66 in	25.4 mm	1 dB	20 dB	Module	2 GHz	18 GHz	0.65 in	0.65 in
Cinch Connectivity Solutions Midwest Microwave PWD-5530-08-NNN-79	132.1 mm	101.6 mm	5.2 in	4 "	1 dB	15 dB	Module	500 MHz	18 GHz
Cinch Connectivity Solutions Midwest Microwave PWD-5520-02-SMA-79	50.8 mm	6.35 mm	2 in	0.25 in	0.5 dB	20 dB	Module	500 MHz	2 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1917.69

General part information

RF Power Divider 500 MHz ~ 2 GHz Isolation (Min) 20dB Module
