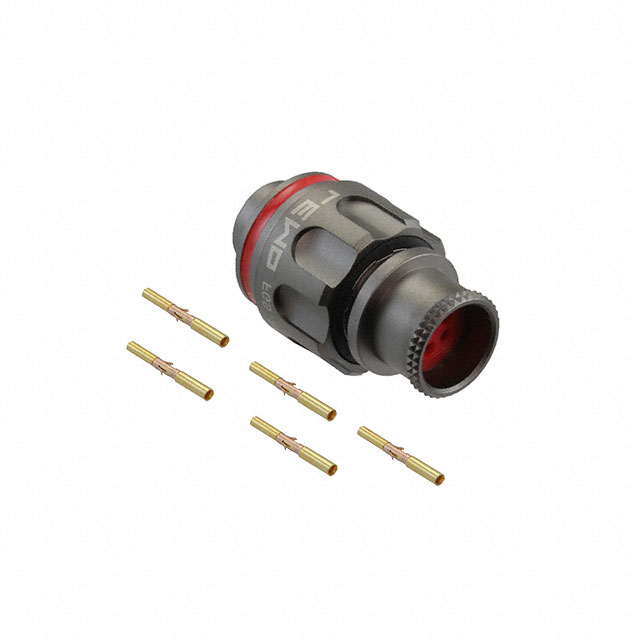

FGS.1M.305.XLMT

Active

LEMO

CONN PLUG FMALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG FMALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	FGS.1M.305.XLMT

Applications	Military, Aerospace, Automotive, Aviation
Cable Opening [custom]	9.7 mm
Cable Opening [custom]	0.382 in
Color	Gray
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	9 A
Features	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	S
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	305
Shielding	Shielded
Termination	Crimp

Part	Color	Number of Positions	Connector Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Features	Cable Opening [custom]	Cable Opening [custom]	Current Rating (Amps)	Shell Size - Insert	Orientation	Primary Material	Insert Material	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Ingress Protection	Contact Finish - Mating	Shell Material	Termination	Mounting Type
LEMO FGS.1M.308.XLMT	Gray	8	Female Sockets Plug	Bronze	-55 °C	200 °C	Aerospace Automotive Aviation Military	Coupling Nut	9.7 mm	0.382 in	5 A	308	S	Metal	Polyetheretherketone (PEEK)	Nickel	59 Áin	1.5 Ám	Shielded	IP68 - Dust Tight Waterproof	Gold	Aluminum Alloy	Crimp	Free Hanging (In-Line)
LEMO FGS.1M.307.XLMT	Gray	7	Female Sockets Plug	Bronze	-55 °C	200 °C	Aerospace Automotive Aviation Military	Coupling Nut	9.7 mm	0.382 in	7 A	307	S	Metal	Polyetheretherketone (PEEK)	Nickel	59 Áin	1.5 Ám	Shielded	IP68 - Dust Tight Waterproof	Gold	Aluminum Alloy	Crimp	Free Hanging (In-Line)
LEMO FGS.1M.308.XLMM	Gray	8	Female Sockets Plug	Bronze	-55 °C	200 °C	Aerospace Automotive Aviation Military	Coupling Nut			5 A	308	S	Metal	Polyetheretherketone (PEEK)	Nickel	59 Áin	1.5 Ám	Shielded	IP68 - Dust Tight Waterproof	Gold	Aluminum Alloy	Crimp	Free Hanging (In-Line)
LEMO FGS.1M.305.XLMT	Gray		Female Sockets Plug	Bronze	-55 °C	200 °C	Aerospace Automotive Aviation Military	Coupling Nut	9.7 mm	0.382 in	9 A	305	S	Metal	Polyetheretherketone (PEEK)	Nickel	59 Áin	1.5 Ám	Shielded	IP68 - Dust Tight Waterproof	Gold	Aluminum Alloy	Crimp	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Crimp
