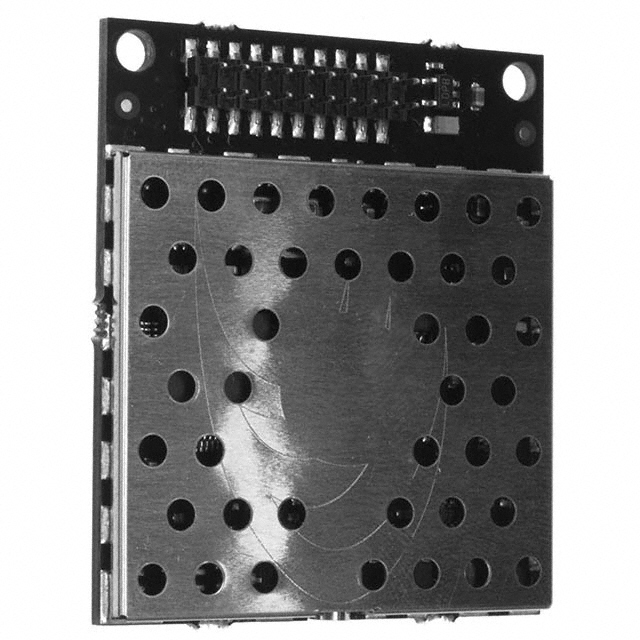

AC4490-1000M

Active

Ezurio LLC

RF TXRX MOD ISM<1GHZ MMCX CHAS

Search across all available documentation for this part.

Active

Ezurio LLC

RF TXRX MOD ISM<1GHZ MMCX CHAS

Technical Specifications

Parameters and characteristics for this part

Part	Current - Receiving	Serial Interfaces	Sensitivity	Frequency	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Power - Output	Mounting Type	Modulation	Current - Transmitting	Antenna Type	Data Rate	RF Family/Standard	Voltage - Supply	Frequency [Min]	Frequency [Max]
Ezurio LLC AC4490-200M	68 mA	UART	-110 dBm	900 MHz	Module	-40 °C	80 C	3.3 V	5.5 V	23 dBmW	Chassis Mount	FHSS FSK	68 mA	Antenna Not Included MMCX	115.2 kbps	General ISM < 1GHz
Ezurio LLC AC4490-1X1			-99 dBm		28-SMD Module	-40 °C	85 °C			10 dBm	Surface Mount	FHSS FSK		Antenna Not Included Castellation			3.3 V	902 MHz	928 MHz
Ezurio LLC AC4490-1000M	650 mA	UART	-110 dBm	900 MHz	Module	-40 °C	80 C	3.3 V	5.5 V	30 dBm	Chassis Mount	FHSS FSK	650 mA	Antenna Not Included MMCX	115.2 kbps	General ISM < 1GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General ISM < 1GHz Transceiver Module 900MHz Antenna Not Included, MMCX Chassis Mount
