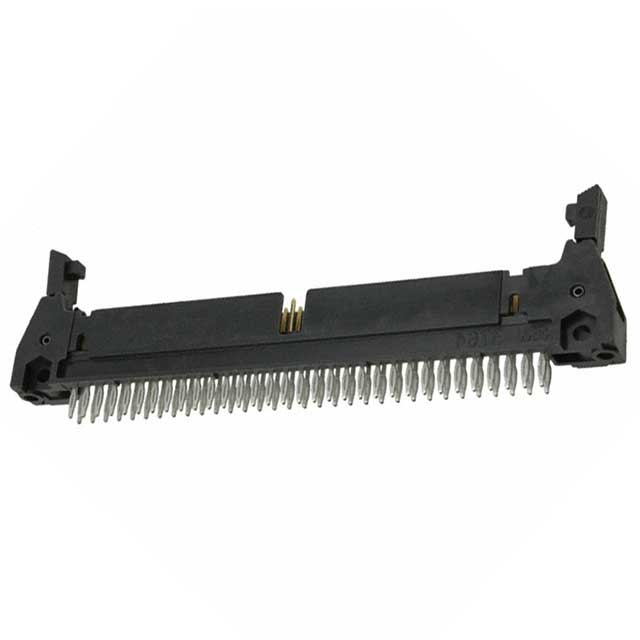

N3764-630T02RB

Active

3M (TC)

CONN HEADER VERT 64POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

N3764-630T02RB

Active

3M (TC)

CONN HEADER VERT 64POS 2.54MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N3764-630T02RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	300 µin
Contact Finish Thickness - Post	7.62 µm
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	4.45 mm
Contact Length - Post	0.175 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Long
Insulation Color	Black
Insulation Height	17.27 mm
Insulation Height	0.68 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length [x]	0.715 "
Overall Contact Length [x]	18.16 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder, Press-Fit

N3764 Series

Part	Contact Finish - Mating	Contact Material	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Connector Type	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Style	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Shrouding	Contact Length - Mating	Contact Length - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Shape	Insulation Color	Fastening Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Insulation Material	Insulation Height	Insulation Height	Number of Positions	Overall Contact Length	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]
3M (TC) N3764-5302RB	Gold	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	Through Hole Right Angle	Header	1.75 A	200 µin	5.08 µm	Solder	Board to Board Cable	Male Pin	105 ░C	-55 °C	2	Shrouded - 4 Wall	6.1 mm	0.24 in	30 Áin	0.76 Ám	Tin	Square	Black	Latch Lock/Eject Hooks Long	All	2.84 mm	0.112 in	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.34 in	8.64 mm	64
3M (TC) N3764-6203RB	Gold	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	Through Hole	Header	1.75 A	200 µin	5.08 µm	Solder	Board to Board Cable	Male Pin	105 ░C	-55 °C	2	Shrouded - 4 Wall	6.1 mm	0.24 in	30 Áin	0.76 Ám	Tin	Square	Black	Latch Lock/Eject Hooks Short	All	3.94 mm	0.155 "	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.68 in	17.27 mm	64	0.695 in	17.65 mm
3M (TC) N3764-1003RB	Gold	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	Through Hole Right Angle	Header	1.75 A	200 µin	5.08 µm	Solder	Board to Board Cable	Male Pin	105 ░C	-55 °C	2	Shrouded - 3 Wall	6.1 mm	0.24 in	30 Áin	0.76 Ám	Tin	Square	Black	Push-Pull	All	3.94 mm	0.155 "	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.311 in	7.9 mm	64
3M (TC) N3764-5202RB	Gold	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	Through Hole Right Angle	Header	1.75 A	200 µin	5.08 µm	Solder	Board to Board Cable	Male Pin	105 ░C	-55 °C	2	Shrouded - 4 Wall	6.1 mm	0.24 in	30 Áin	0.76 Ám	Tin	Square	Black	Latch Lock/Eject Hooks Short	All	2.84 mm	0.112 in	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.34 in	8.64 mm	64
3M (TC) N3764-2202RB	Gold	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	Through Hole	Header	1.75 A	200 µin	5.08 µm	Solder	Board to Board Cable	Male Pin	105 ░C	-55 °C	2	Shrouded - 3 Wall	6.1 mm	0.24 in	30 Áin	0.76 Ám	Tin	Square	Black	Latch Lock/Eject Hooks Short	All	2.84 mm	0.112 in	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.68 in	17.27 mm	64	0.652 in	16.56 mm
3M (TC) N3764-6502	Gold	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	Through Hole	Header	1.75 A	200 µin	5.08 µm	Solder	Board to Board Cable	Male Pin	105 ░C	-55 °C	2	Shrouded - 4 Wall	6.1 mm	0.24 in	30 Áin	0.76 Ám	Tin-Lead	Square	Beige	Latch Lock/Eject Hooks Short	All	2.84 mm	0.112 in	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.68 in	17.27 mm	64	0.652 in	16.56 mm
3M (TC) N3764-6002	Gold	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	Through Hole	Header	1.75 A	200 µin	5.08 µm	Solder	Board to Board Cable	Male Pin	105 ░C	-55 °C	2	Shrouded - 4 Wall	6.1 mm	0.24 in	30 Áin	0.76 Ám	Tin-Lead	Square	Beige	Push-Pull	All	2.84 mm	0.112 in	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.68 in	17.27 mm	64	0.652 in	16.56 mm
3M (TC) N3764-5203RB	Gold	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	Through Hole Right Angle	Header	1.75 A	200 µin	5.08 µm	Solder	Board to Board Cable	Male Pin	105 ░C	-55 °C	2	Shrouded - 4 Wall	6.1 mm	0.24 in	30 Áin	0.76 Ám	Tin	Square	Black	Latch Lock/Eject Hooks Short	All	3.94 mm	0.155 "	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.34 in	8.64 mm	64
3M (TC) N3764-630T02RB	Gold	Copper Alloy	UL94 V-0	2.54 mm	0.1 in	Through Hole	Header	1.75 A	300 µin	7.62 µm	Press-Fit Solder	Board to Board Cable	Male Pin	105 ░C	-55 °C	2	Shrouded - 4 Wall	6.1 mm	0.24 in	30 Áin	0.76 Ám	Tin	Square	Black	Latch Lock/Eject Hooks Long	All	4.45 mm	0.175 in	0.1 in	2.54 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.68 in	17.27 mm	64			0.715 "	18.16 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.35
		10	$ 17.46

Description

General part information

N3764 Series

Connector Header Through Hole 64 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
