IQS231AEV02-S

Active

Azoteq Corporation

IQS231A EVALUATION KIT 2

Search across all available documentation for this part.

Active

Azoteq Corporation

IQS231A EVALUATION KIT 2

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Number of Inputs	Interface	Mounting Type	Resolution	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply	LED Driver Channels [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Sensing Range	Sensor Type	Supplied Contents	Utilized IC / Part
Azoteq Corporation IQS231A-00000000-DNR	10-WFDFN Exposed Pad	1	I2C	Surface Mount	8 b	85 °C	-20 C	80 µA	1	3.3 V	1.8 V	10-DFN (3x3)
Azoteq Corporation IQS231A-00000000-TSR	SOT-23-6 Thin TSOT-23-6	1	I2C	Surface Mount	8 b	85 °C	-20 C	80 µA	1	3.3 V	1.8 V	TSOT-23-6
Azoteq Corporation IQS231AEV02-S			I2C							3.3 V	1.8 V		1 Button/Key	Touch Capacitive	Board(s)	IQS231A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.89

General part information

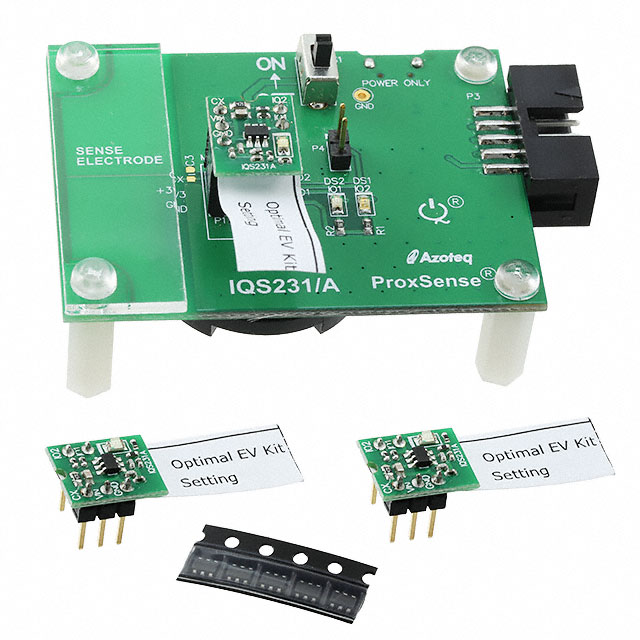

IQS231A - Touch, Capacitive Sensor Evaluation Board

Technical documentation and resources
