C3DES-5018G

Active

CW Industries

IDC CABLE - CKR50S/AE50G/CCE50S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKR50S/AE50G/CCE50S

Technical Specifications

Parameters and characteristics for this part

Specification	C3DES-5018G

Cable Termination	IDC
Connector Type	Socket to Card Edge
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Features	Polarizing Key, Strain Relief
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded
Usage	Board In

Part	Number of Rows	Cable Termination	Pitch - Cable	Pitch - Cable	Connector Type	Color	Contact Finish	Length	Length	Length	Pitch - Connector	Pitch - Connector	Usage	Shielding	Number of Positions	Features	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]
CW Industries C3DES-5006M	2	IDC	0.05 "	1.27 mm	Socket to Card Edge	Multiple Ribbon	Tin	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	Board In	Unshielded	50	Polarizing Key Strain Relief	2.54 µm	100 µin
CW Industries C3DES-5036G	2	IDC	0.05 "	1.27 mm	Socket to Card Edge		Tin				0.1 in	2.54 mm	Board In	Unshielded	50	Polarizing Key Strain Relief	2.54 µm	100 µin	3 ft	914.4 mm
CW Industries C3DES-5006G	2	IDC	0.05 "	1.27 mm	Socket to Card Edge		Tin	152.4 mm	6 "	0.5 '	0.1 in	2.54 mm	Board In	Unshielded	50	Polarizing Key Strain Relief	2.54 µm	100 µin
CW Industries C3DES-5018G	2	IDC	0.05 "	1.27 mm	Socket to Card Edge		Tin				0.1 in	2.54 mm	Board In	Unshielded	50	Polarizing Key Strain Relief	2.54 µm	100 µin	1.5 ft	457.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

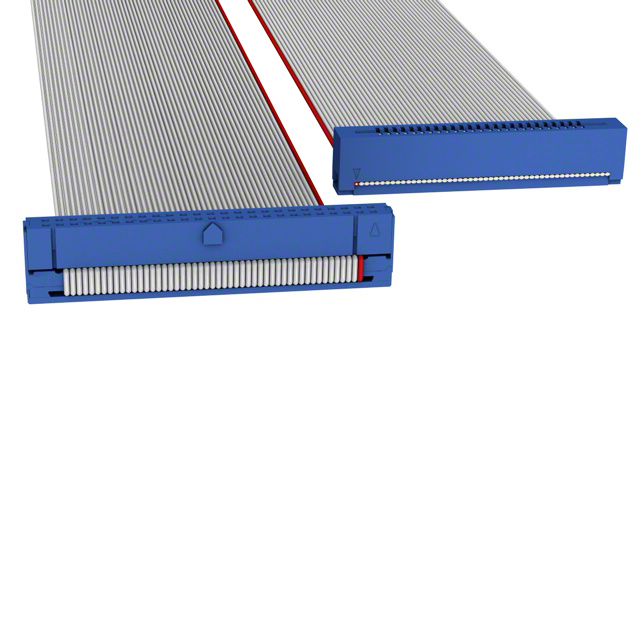

50 Position Cable Assembly Rectangular Socket to Card Edge 1.50' (457.20mm)
