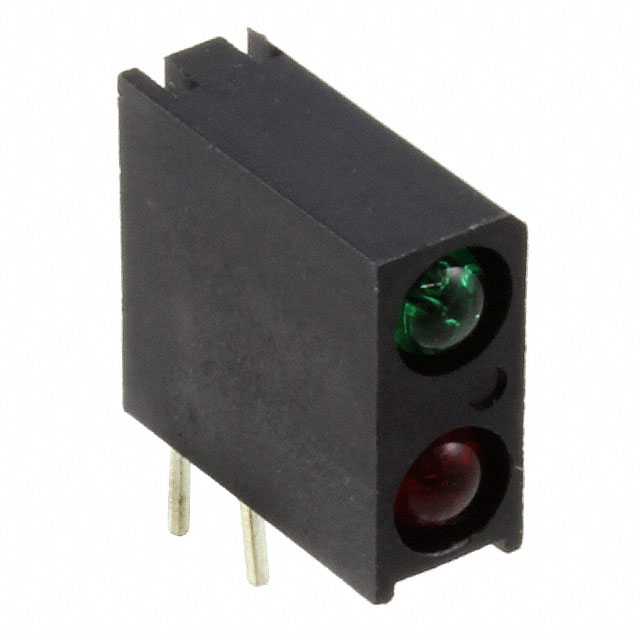

5532221100F

Active

DIALIGHT

LED CBI 3MM BI-LVL GRN/RED RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5532221100F

Active

DIALIGHT

LED CBI 3MM BI-LVL GRN/RED RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5532221100F

Color	Red (x 1), Green (x 1)
Configuration	2 High
Current [custom]	30 mA
Current [custom]	30 mA
Lens Size [diameter]	3 mm
Lens Style	Round with Domed Top
Millicandela Rating [custom]	50 mcd
Millicandela Rating [custom]	29 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	45 °
Voltage Rating	2.1 V, 2 V
Wavelength - Peak	565 nm, 635 nm

5532221 Series

Part	Mounting Type	Lens Size [diameter]	Lens Style	Millicandela Rating [custom]	Millicandela Rating [custom]	Viewing Angle	Voltage Rating	Color	Configuration	Wavelength - Peak	Current [custom]	Current [custom]
DIALIGHT 5532221803F	Through Hole Right Angle	3 mm	Round with Domed Top
DIALIGHT 5532221110F	Through Hole Right Angle	3 mm	Round with Domed Top	50 mcd	29 mcd	45 °	2 V 2.1 V	Green (x 1) Red (x 1)	2 High	565 nm 635 nm
DIALIGHT 5532221100F	Through Hole Right Angle	3 mm	Round with Domed Top	50 mcd	29 mcd	45 °	2 V 2.1 V	Green (x 1) Red (x 1)	2 High	565 nm 635 nm	30 mA	30 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	700	$ 1.07

Description

General part information

5532221 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1), Red (x 1) 2.1V Green, 2V Red 30mA Green, 30mA Red Round with Domed Top 3.00mm Dia Through Hole, Right Angle
