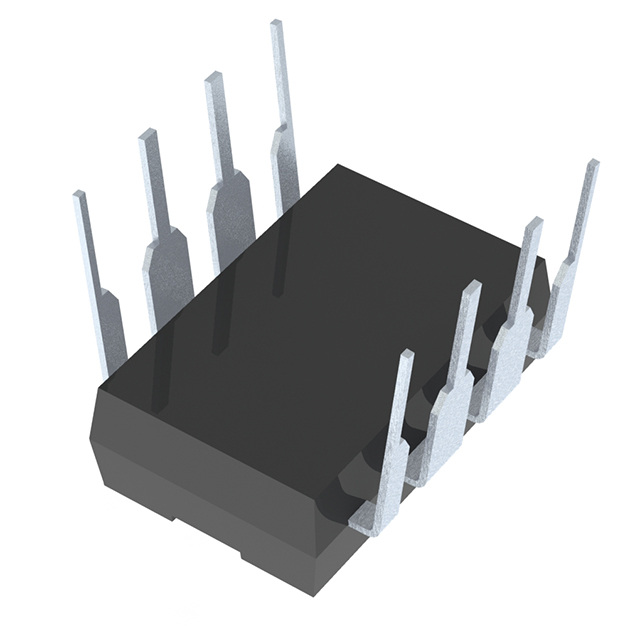

REF194GP

Obsolete

Analog Devices

IC VREF SERIES PREC 4.5V 8-DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

REF194GP

Obsolete

Analog Devices

IC VREF SERIES PREC 4.5V 8-DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REF194GP

Mounting Type	Through Hole
Package / Case	0.3 in
Package / Case	8-DIP
Package / Case	7.62 mm
Supplier Device Package	8-PDIP

REF194 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Noise - 0.1Hz to 10Hz	Tolerance	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output	Package / Case	Package / Case [y]	Package / Case [x]	Mounting Type	Output Type	Temperature Coefficient	Supplier Device Package	Voltage - Output (Min/Fixed)	Reference Type	Package / Case	Package / Case
Analog Devices REF194GSZ-REEL7	85 °C	-40 °C	45 µVp-p	0.22 %	15 V	4.75 V	30 mA	8-SOIC	3.9 mm	0.154 in	Surface Mount	1.81 mOhm	25 ppm/°C	8-SOIC	4.5 V	Series
Analog Devices REF194GSZ-REEL	85 °C	-40 °C	45 µVp-p	0.22 %	15 V	4.75 V	30 mA	8-SOIC	3.9 mm	0.154 in	Surface Mount	1.81 mOhm	25 ppm/°C	8-SOIC	4.5 V	Series
Analog Devices REF194ESZ	85 °C	-40 °C	45 µVp-p	0.04 %	15 V	4.75 V	30 mA	8-SOIC	3.9 mm	0.154 in	Surface Mount	1.81 mOhm	5 ppm/°C	8-SOIC	4.5 V	Series
Analog Devices REF194GS-REEL	85 °C	-40 °C	45 µVp-p	0.22 %	15 V	4.75 V	30 mA	8-SOIC	3.9 mm	0.154 in	Surface Mount	1.81 mOhm	25 ppm/°C	8-SOIC	4.5 V	Series
Analog Devices REF194ES-REEL	85 °C	-40 °C	45 µVp-p	0.04 %			30 mA	8-SOIC	3.9 mm	0.154 in	Surface Mount	1.81 mOhm	5 ppm/°C	8-SOIC	4.5 V	Series
Analog Devices REF194ES	85 °C	-40 °C	45 µVp-p	0.04 %	15 V	4.75 V	30 mA	8-SOIC	3.9 mm	0.154 in	Surface Mount	1.81 mOhm	5 ppm/°C	8-SOIC	4.5 V	Series
Analog Devices REF194GSZ	85 °C	-40 °C	45 µVp-p	0.22 %	15 V	4.75 V	30 mA	8-SOIC	3.9 mm	0.154 in	Surface Mount	1.81 mOhm	25 ppm/°C	8-SOIC	4.5 V	Series
Analog Devices REF194GS-REEL7	85 °C	-40 °C	45 µVp-p	0.22 %	15 V	4.75 V	30 mA	8-SOIC	3.9 mm	0.154 in	Surface Mount	1.81 mOhm	25 ppm/°C	8-SOIC	4.5 V	Series
Analog Devices REF194ESZ-REEL	85 °C	-40 °C	45 µVp-p	0.04 %	15 V	4.75 V	30 mA	8-SOIC	3.9 mm	0.154 in	Surface Mount	1.81 mOhm	5 ppm/°C	8-SOIC	4.5 V	Series
Analog Devices REF194GP								8-DIP			Through Hole			8-PDIP			0.3 in	7.62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	167	$ 1.80

Description

General part information

REF194 Series

Voltage Reference IC V 8-PDIP
