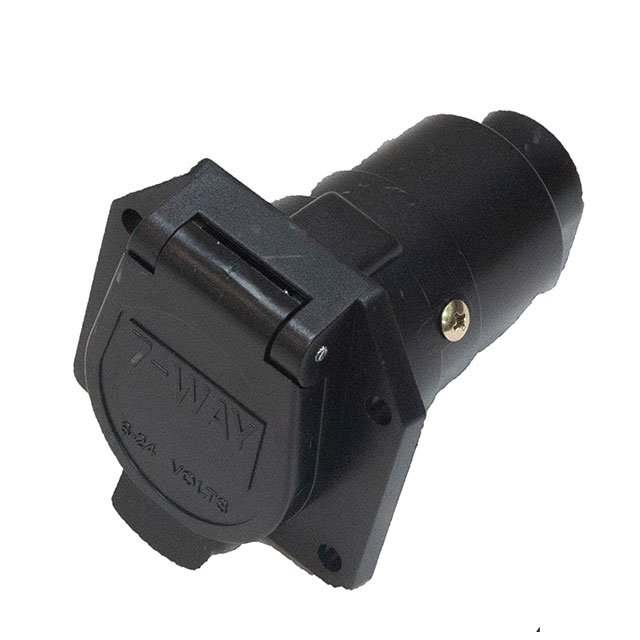

TC7W-SC2-N

Active

Switch Components

CONN CIRC RCPT 7POS SET SCREW

Search across all available documentation for this part.

Active

Switch Components

CONN CIRC RCPT 7POS SET SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	TC7W-SC2-N

Applications	Automotive
Color	Black
Connector Type	Female Sockets, Male Pins, Receptacle
Contact Material	Brass
Fastening Type	Push-Pull
Features	Cap (Cover)
Insert Material	Polyacrylonitrile Butadiene Styrene (ABS)
Mounting Feature	Flange
Number of Positions [custom]	1
Number of Positions [custom]	6
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyacrylonitrile Butadiene Styrene (ABS)
Shielding	Unshielded
Termination	Set Screw

Part	Primary Material	Shielding	Orientation	Applications	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Shell Material	Features	Contact Material	Termination	Mounting Feature	Fastening Type	Color	Insert Material
Switch Components TC7W-SC2-Z	Metal	Unshielded	Keyed	Automotive	Female Sockets Male Pins Receptacle	1	6	Iron	Cable Clamp Cap (Cover)	Brass	Set Screw	Flange	Push-Pull	Silver
Switch Components TC7W-SC2-N	Plastic	Unshielded	Keyed	Automotive	Female Sockets Male Pins Receptacle	1	6	Polyacrylonitrile Butadiene Styrene (ABS)	Cap (Cover)	Brass	Set Screw	Flange	Push-Pull	Black	Polyacrylonitrile Butadiene Styrene (ABS)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.97

General part information

7 (6 + PE) Position Circular Connector Receptacle, Female Sockets and Male Pins Set Screw
