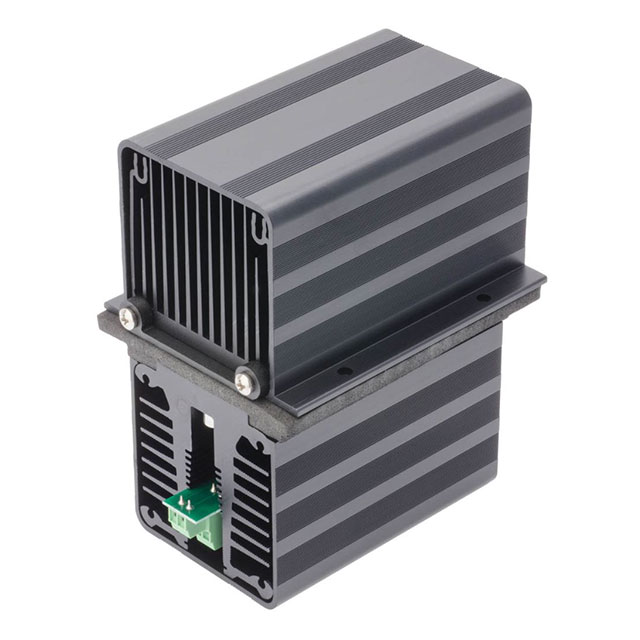

AA-027-12-22-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY AIR-AIR 28.5W
Deep-Dive with AI
Search across all available documentation for this part.
AA-027-12-22-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY AIR-AIR 28.5W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AA-027-12-22-00-00 |
|---|---|
| Current | 3.1 A |
| Dimensions - Overall [x] | 107 mm |
| Dimensions - Overall [y] | 84 mm |
| Dimensions - Overall [z] | 138.2 mm |
| Fan Location | Cold Side / Warm Side |
| Heat Transfer Type | Air to Air |
| Operating Temperature [Max] | 39 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 28.5 W |
| Power - Input | 37.2 W |
| Voltage | 12 V |
| Weight | 997.9 g |
| Weight | 2.2 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 209.75 | |
Description
General part information
AA-027-12 Series
Air to Air Thermoelectric Assembly 28.5 W
