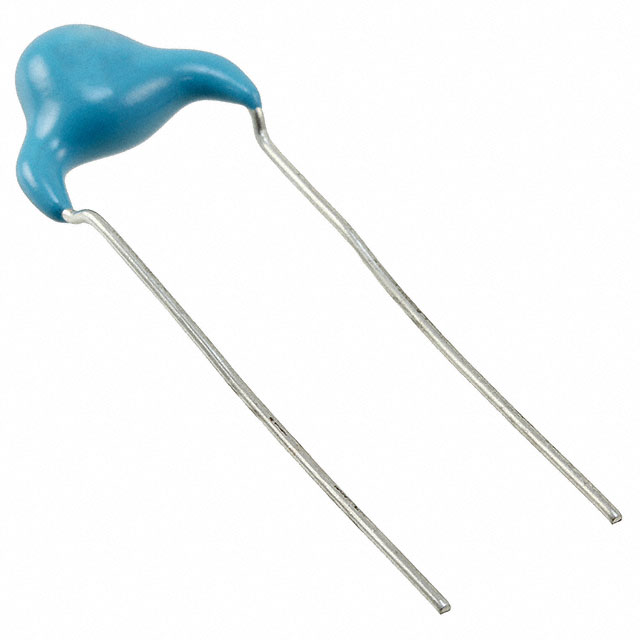

DE11XKX150JN4AC05F

NRND

Murata Power Solutions Inc.

CAP CER 15PF 250V SL RADIAL

Search across all available documentation for this part.

NRND

Murata Power Solutions Inc.

CAP CER 15PF 250V SL RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Features	Lead Spacing	Lead Spacing	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Temperature Coefficient	Capacitance	Ratings	Tolerance	Lead Style
Murata Power Solutions Inc. DE11XKX470JJ4BC05F
Murata Power Solutions Inc. DE11XKX680JB4BC05F	9 mm	0.354 in	Flame Retardant	0.394 in	10 mm	Safety	13 mm	0.512 "	250 VAC	Through Hole	125 °C	-40 °C	Disc Radial	SL	68 pF	X1 Y1	5 %	Straight
Murata Power Solutions Inc. DE11XKX330JJ4BC05F
Murata Power Solutions Inc. DE11XKX680JJ4BC05F
Murata Power Solutions Inc. DE11XKX220JN4AC05F	9 mm	0.354 in	Flame Retardant	0.394 in	10 mm	Safety	13 mm	0.512 "	250 VAC	Through Hole	125 °C	-40 °C	Disc Radial	SL	22 pF	X1 Y1	5 %	Straight
Murata Power Solutions Inc. DE11XKX100JN4AC05F	9 mm	0.354 in	Flame Retardant	0.394 in	10 mm	Safety	13 mm	0.512 "	250 VAC	Through Hole	125 °C	-40 °C	Disc Radial	SL	10 pF	X1 Y1	5 %	Straight
Murata Power Solutions Inc. DE11XKX150JN4AC05F	9 mm	0.354 in	Flame Retardant	0.394 in	10 mm	Safety	13 mm	0.512 "	250 VAC	Through Hole	125 °C	-40 °C	Disc Radial	SL	15 pF	X1 Y1	5 %	Straight
Murata Power Solutions Inc. DE11XKX470JA4BC05F	9 mm	0.354 in	Flame Retardant	0.394 in	10 mm	Safety	13 mm	0.512 "	250 VAC	Through Hole	125 °C	-40 °C	Disc Radial	SL	47 pF	X1 Y1	5 %	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 pF ±5% 250VAC Ceramic Capacitor SL Radial, Disc

Technical documentation and resources
