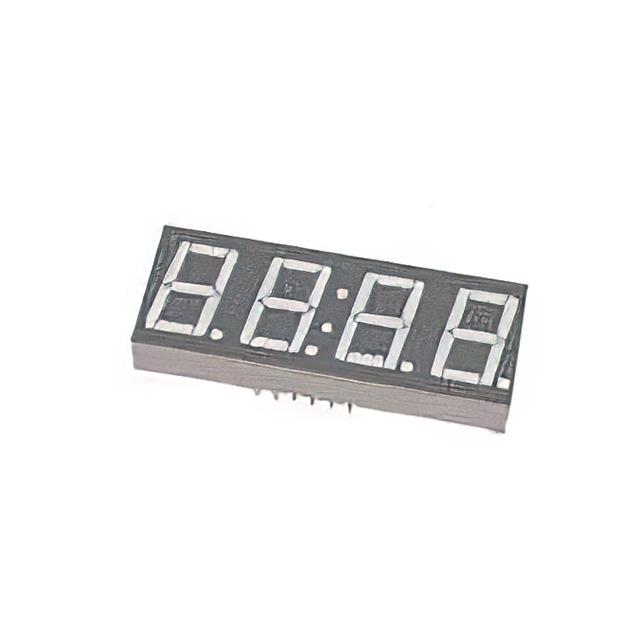

CC56-12SURKWA
ActiveKingbright
SMART/NORMAL 7 SEG NUMERIC LED DISPLAY, HYPER RED, 14.2MM, ROHS COMPLIANT PACKAGE-12
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CC56-12SURKWA |
|---|---|
| Color | Red |
| Common Pin | Common Cathode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 14.2 mm |
| Digit/Alpha Size | 0.56 in |
| Display Type | 7-Segment |
| Millicandela Rating | 72 mcd |
| Number of Characters | 4 |
| Package / Case | 15.24 mm |
| Package / Case | 0.6 in |
| Package / Case | 12-DIP |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension | 19 mm, 50.3 mm, 8.35 mm |
| Size / Dimension [x] | 0.748 in |
| Size / Dimension [y] | 1.98 in |
| Size / Dimension [z] | 0.329 " |
| Voltage - Forward (Vf) (Typ) | 1.85 V |
| Wavelength - Peak | 645 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.38 | |
| 10 | $ 4.51 | |||
| 100 | $ 3.70 | |||
| 500 | $ 3.12 | |||
| 1000 | $ 2.86 | |||
| 2000 | $ 2.74 | |||
Description
General part information
CC56-12 Series
Display Modules - LED Character and Numeric Red 7-Segment 4 Character Common Cathode 1.85V 10mA 0.748" H x 1.980" W x 0.329" D (19.00mm x 50.30mm x 8.35mm) 12-DIP (0.600", 15.24mm)
