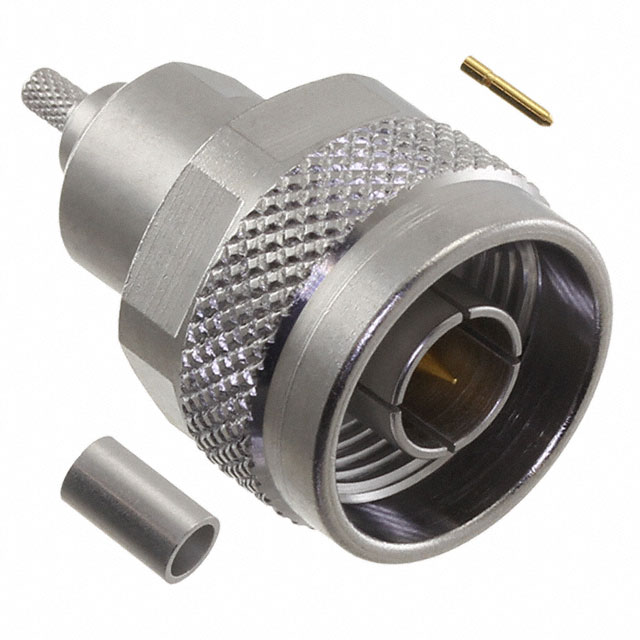

53S107-802N5

Active

Rosenberger

CONN N TYPE PLUG STR 50OHM CRIMP

Search across all available documentation for this part.

Active

Rosenberger

CONN N TYPE PLUG STR 50OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	53S107-802N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-174A, 316, 188A
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

Part	Body Finish	Connector Type	Dielectric Material	Body Material	Frequency - Max [Max]	Contact Termination	Center Contact Plating	Insertion Loss	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Cable Group	Cable Group	Number of Ports	Shield Termination	Connector Style	Mounting Type	Impedance	Includes	Voltage Rating	Housing Color	Mating Cycles
Rosenberger 53S107-106N5	White Bronze	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Brass	11 GHz	Crimp	Gold	0.05 dB	155 °C	-55 °C	Brass	141	RG-58C	1	Crimp	N Type	Free Hanging (In-Line)	50 Ohms	1 Connector 1 Contact 1 Ferrule	500 V	Silver	500
Rosenberger 53S107-802N5	White Bronze	Male Pin Plug	Polytetrafluoroethylene (PTFE)	Brass	11 GHz	Crimp	Gold	0.05 dB			Bronze		188A 316 RG-174A	1	Crimp	N Type	Free Hanging (In-Line)	50 Ohms	1 Connector 1 Contact 1 Ferrule	500 V	Silver	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
