BC817BPN

Active

Diotec Semiconductor

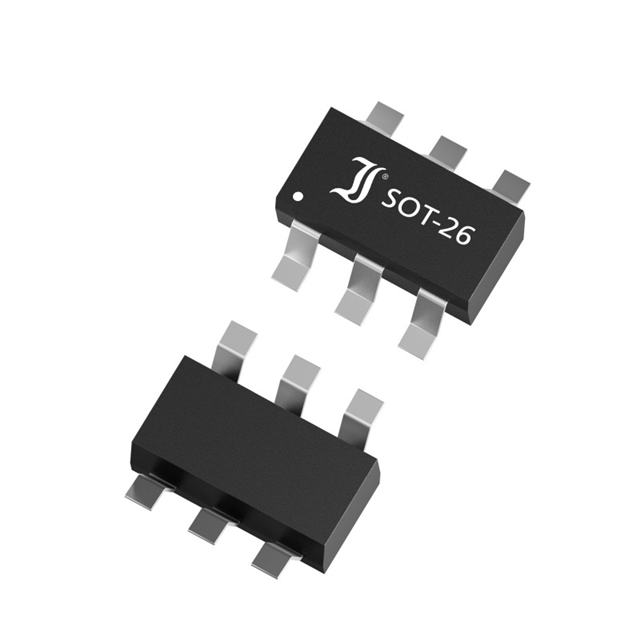

TRANS NPN/PNP 45V 500MA SOT-26

Search across all available documentation for this part.

Active

Diotec Semiconductor

TRANS NPN/PNP 45V 500MA SOT-26

Technical Specifications

Parameters and characteristics for this part

Specification	BC817BPN

Current - Collector (Ic) (Max) [Max]	500 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	160
Frequency - Transition	80 MHz, 100 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SC-74, SOT-457
Power - Max [Max]	300 mW
Supplier Device Package	SOT-26
Transistor Type	1 NPN, 1 PNP
Vce Saturation (Max) @ Ib, Ic	700 mV
Voltage - Collector Emitter Breakdown (Max)	45 V

Part	Vce Saturation (Max) @ Ib, Ic	Transistor Type	Current - Collector Cutoff (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Transition	Mounting Type	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)	Supplier Device Package	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Package / Case
Diotec Semiconductor BC817BPN	700 mV	1 NPN 1 PNP	100 nA	-55 °C	150 °C	80 MHz 100 MHz	Surface Mount	500 mA	45 V	SOT-26	300 mW	160	SC-74 SOT-457

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor Array 1 NPN, 1 PNP 45V 500mA 100MHz, 80MHz 300mW Surface Mount SOT-26
