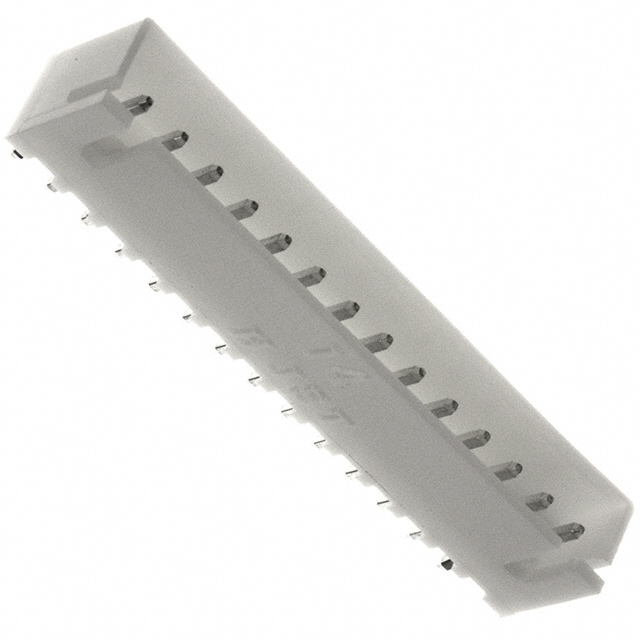

B14B-XH-A

Active

JST Sales America Inc.

CONN HEADER VERT 14POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 14POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	B14B-XH-A

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Mated Stacking Heights	9.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	250 VDC

Part	Number of Rows	Insulation Color	Number of Positions Loaded	Contact Shape	Number of Positions	Material Flammability Rating	Fastening Type	Voltage Rating	Contact Material	Termination	Mounting Type	Insulation Height [z]	Insulation Height [z]	Contact Type	Shrouding	Current Rating (Amps)	Style	Contact Finish - Post	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Mated Stacking Heights
JST Sales America Inc. B14B-XH-2(LF)(SN)	1	Natural	All	Square	14	UL94 V-0	Detent Lock	250 VDC	Brass	Press-Fit Solder	Through Hole	7 mm	0.276 in	Male Pin	Shrouded - 4 Wall	3 A	Board to Cable/Wire	Tin	Polyamide (PA66) Nylon 6/6 Glass Filled	-25 °C	85 °C	2.5 mm	0.098 in	Header	0.134 in	3.4 mm
JST Sales America Inc. B14B-XH-A	1	Natural	All	Square	14	UL94 V-0	Detent Lock	250 VDC	Brass	Press-Fit Solder	Through Hole	7 mm	0.276 in	Male Pin	Shrouded - 4 Wall	3 A	Board to Cable/Wire	Tin	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	2.5 mm	0.098 in	Header	0.134 in	3.4 mm	9.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 14 position 0.098" (2.50mm)
