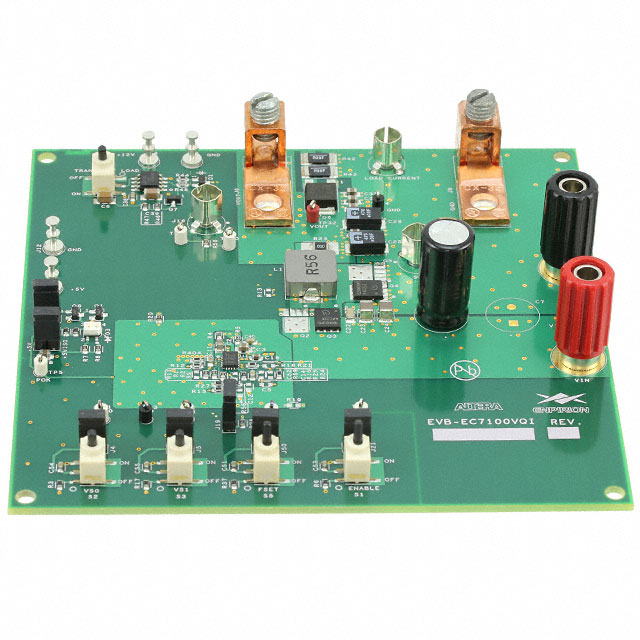

EVB-EC7100VQI
ObsoleteAltera
EVAL BOARD PWM DC-DC CTRLR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EVB-EC7100VQI
ObsoleteAltera
EVAL BOARD PWM DC-DC CTRLR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EVB-EC7100VQI |
|---|---|
| Board Type | Fully Populated |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | EC7100VQI |
| Voltage - Input [Max] | 25 V |
| Voltage - Input [Min] | 3.3 V |
| Voltage - Output [Max] | 5 V |
| Voltage - Output [Min] | 0.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EC7100 Series
EC7100VQI Enpirion® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Documents
Technical documentation and resources
