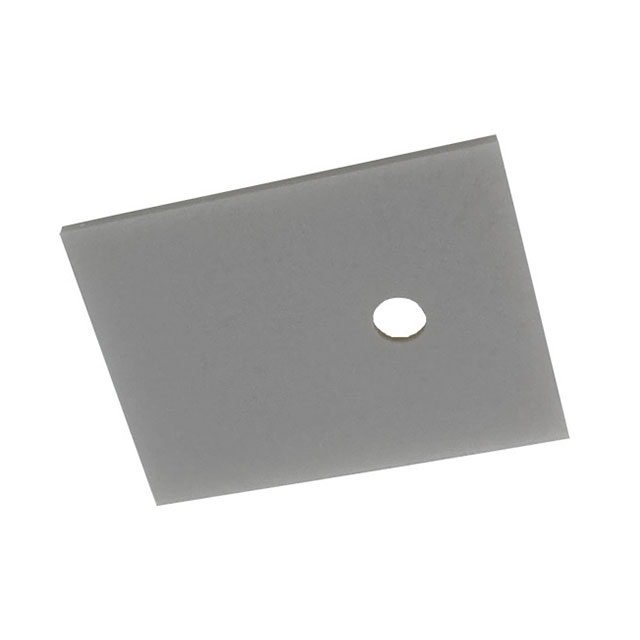

XL25D-TO264-28-22-1

Active

t-Global Technology

CERAMIC HEAT SPREADER 28X22X1MM

Search across all available documentation for this part.

Active

t-Global Technology

CERAMIC HEAT SPREADER 28X22X1MM

Technical Specifications

Parameters and characteristics for this part

Part	Length [x]	Length [x]	Package Cooled	Attachment Method	Type	Width [x]	Width [x]	Fin Height [z]	Fin Height [z]	Shape	Material	Shelf Life	Width	Width	Length	Length	Width [y]	Width [y]
t-Global Technology XL25D-TO220-18.5-12-1	0.787 "	20 mm	TO-220	Thermal Tape	Heat Spreader	0.728 "	18.5 mm	0.039 in	1 mm	Rectangular	Ceramic
t-Global Technology XL25D-TO220-20-14-0.64	0.787 "	20 mm	TO-220	Thermal Tape	Heat Spreader					Rectangular	Ceramic	60 Months	0.551 in	14 mm
t-Global Technology XL25D-TO247-22-17-1			TO-247	Thermal Tape	Heat Spreader	0.669 in	17 mm	0.039 in	1 mm	Rectangular	Ceramic	60 Months			0.866 "	22 mm
t-Global Technology XL25D-TO220-20-14-1	0.787 "	20 mm	TO-220	Thermal Tape	Heat Spreader			0.039 in	1 mm	Rectangular	Ceramic		0.551 in	14 mm
t-Global Technology XL25D-TO3P-25-20-0.64			TO-3P	Thermal Tape	Heat Spreader					Rectangular	Ceramic	60 Months			0.984 in	25 mm	20 mm	0.787 in
t-Global Technology XL25D-TO247-22-17-0.64			TO-247	Thermal Tape	Heat Spreader	0.669 in	17 mm			Rectangular	Ceramic	60 Months			0.866 "	22 mm
t-Global Technology XL25D-TO264-28-22-0.64			TO-264	Thermal Tape	Heat Spreader	0.866 "	22 mm			Rectangular	Ceramic	60 Months			1.102 in	28 mm
t-Global Technology XL25D-TO3P-25-20-1			TO-3P	Thermal Tape	Heat Spreader			0.039 in	1 mm	Rectangular	Ceramic	60 Months			0.984 in	25 mm	20 mm	0.787 in
t-Global Technology XL25D-TO264-28-22-1			TO-264	Thermal Tape	Heat Spreader	0.866 "	22 mm	0.039 in	1 mm	Rectangular	Ceramic	60 Months			1.102 in	28 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-264 Ceramic Heat Spreader
