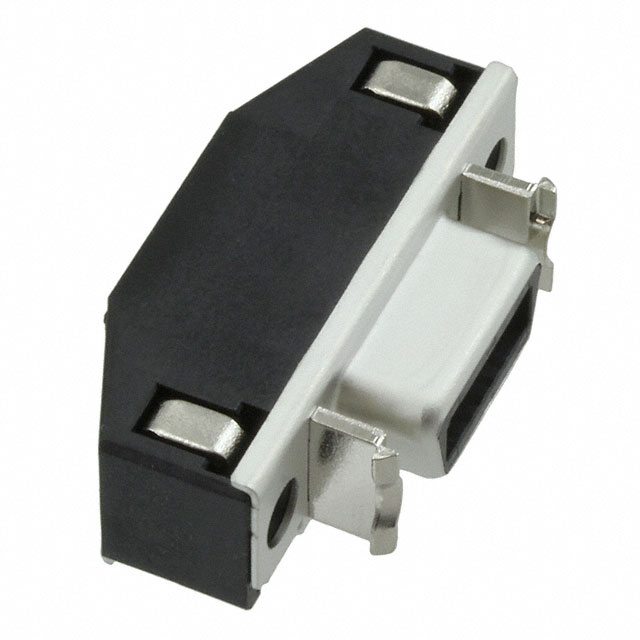

DF02R014NA3
ActiveJAE Electronics
CONN RCPT 14POS R/A SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF02R014NA3
ActiveJAE Electronics
CONN RCPT 14POS R/A SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF02R014NA3 |
|---|---|
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell |
| Flange Feature | 2.6 M |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.57 | |
| 10 | $ 4.15 | |||
| 25 | $ 3.93 | |||
| 40 | $ 3.84 | |||
| 100 | $ 3.66 | |||
| 300 | $ 3.20 | |||
| 500 | $ 3.11 | |||
| 1000 | $ 2.65 | |||
| 2400 | $ 2.47 | |||
Description
General part information
DF02R014 Series
14 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder
