CNN0.13BK1000

Active

Techflex

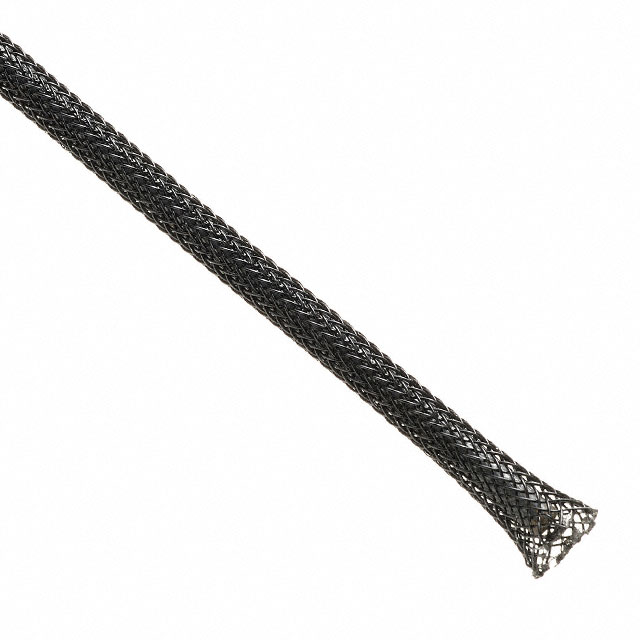

EXPAND SLEEVING 1/8"X1000' BLK

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEVING 1/8"X1000' BLK

Technical Specifications

Parameters and characteristics for this part

Specification	CNN0.13BK1000

Abrasion Protection	Abrasion and Cut Resistant
Color	Black
Diameter - Inside, Expanded [diameter]	6.35 mm
Diameter - Inside, Expanded [diameter]	0.25 in
Diameter - Inside, Non-Expanded [diameter]	0.125 in
Diameter - Inside, Non-Expanded [diameter]	3.18 mm
Features	Clean Cut, Chemical Resistant, Shielded, EMI Resistant
Length	1000 ft
Length	304.8 m
Liquid Protection	Gasoline Resistant
Material	Carbonized, Nylon, Halogen Free
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-45 °C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness	0.71 mm
Wall Thickness	0.028 in

Part	Operating Temperature [Max]	Operating Temperature [Min]	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Abrasion Protection	Features	Type	Type Attributes	Material	Color	Liquid Protection	Length	Length	Wall Thickness	Wall Thickness	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Length [x]	Length [x]
Techflex CNN0.25BK1000	150 °C	-45 °C	0.438 in	11.13 mm	Abrasion and Cut Resistant	Chemical Resistant Clean Cut EMI Resistant Shielded	Sleeve	Expandable	Carbonized Halogen Free Nylon	Black	Gasoline Resistant	1000 ft	304.8 m	0.71 mm	0.028 in
Techflex CNN0.13BK1000	150 °C	-45 °C	0.25 in	6.35 mm	Abrasion and Cut Resistant	Chemical Resistant Clean Cut EMI Resistant Shielded	Sleeve	Expandable	Carbonized Halogen Free Nylon	Black	Gasoline Resistant	1000 ft	304.8 m	0.71 mm	0.028 in	0.125 in	3.18 mm
Techflex CNN0.38BK500	150 °C	-45 °C	0.625 in	15.88 mm	Abrasion and Cut Resistant	Chemical Resistant Clean Cut EMI Resistant Shielded	Sleeve	Expandable	Carbonized Halogen Free Nylon	Black	Gasoline Resistant			0.71 mm	0.028 in	0.375 in	9.53 mm	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sleeve X 1000' (304.80m) Black
