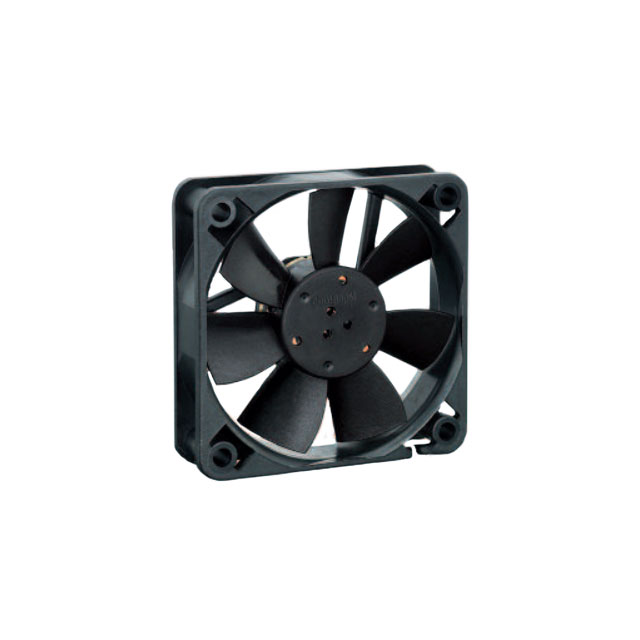

612F/2-638

Active

ebm-papst Inc.

FAN AXIAL 60X15MM 12VDC RECT

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 60X15MM 12VDC RECT

Technical Specifications

Parameters and characteristics for this part

Specification	612F/2-638

Air Flow	0.445 mł/min
Air Flow	15.9 CFM
Bearing Type	Sintec
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	35 dB
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 C
Operating Temperature [Min]	-20 °C
RPM	3900 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Termination	3 Position Rectangular Connector
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Width [x]	15 mm

Part	Material - Blade	Bearing Type	Width [x]	Weight	Weight	Voltage - Rated	Approval Agency	Air Flow	Air Flow	Power (Watts)	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Fan Type	Lifetime @ Temp.	Material - Frame	RPM	Termination	Features	Voltage Range [Max]	Voltage Range [Min]
ebm-papst Inc. 612FH	Fiberglass Reinforced Nylon Polyamide (PA)	Sintec	15 mm	29.94 g	0.066 lb	12 VDC	CE CSA UL VDE	19.4 CFM	0.543 m³/min	1.4 W	31 dB(A)	60 °C	-20 °C	-20 C	60 °C	60 mm	60 mm	Tubeaxial	20 °C 45000 Hrs	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	4500 RPM	2 Wire Leads
ebm-papst Inc. 612F/2H	Fiberglass Reinforced Nylon Polyamide (PA)	Sintec	15 mm			12 VDC		19.4 CFM	0.543 m³/min	1.5 W	37 dB	60 °C	-20 °C	-20 C	60 °C	60 mm	60 mm	Tubeaxial	20 °C 45000 Hrs	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	4500 RPM	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
ebm-papst Inc. 612F/2-638	Fiberglass Reinforced Nylon Polyamide (PA)	Sintec	15 mm			12 VDC		15.9 CFM	0.445 mł/min		35 dB	75 °C	-20 °C	-20 C	75 ░C	60 mm	60 mm	Tubeaxial	50000 Hrs	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3900 RPM	3 Position Rectangular Connector	Locked Rotor Protection Speed Sensor (Tach)	13.2 VDC	10.8 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Sintec 15.9 CFM (0.445mł/min) 3 Position Rectangular Connector
