ESSV030W-0700-42
ObsoleteERP Power, LLC
120 TO 277 VAC, 87% EFFICIENCY,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ESSV030W-0700-42
ObsoleteERP Power, LLC
120 TO 277 VAC, 87% EFFICIENCY,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ESSV030W-0700-42 |
|---|---|
| Approval Agency | CE, cURus, cULus |
| Current - Output (Max) [Max] | 700 mA |
| Dimming | ELV, Analog, TRIAC |
| Efficiency | 87 % |
| Features | OTP, SCP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 29 W |
| Ratings | IP66 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 120 VAC |
| Voltage - Output [Max] | 42 V |
| Voltage - Output [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ESSV030W Series

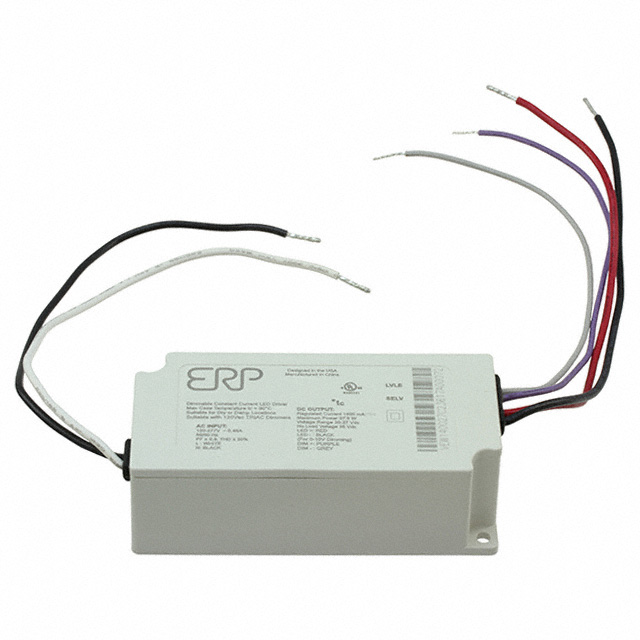

700mA 24 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output
