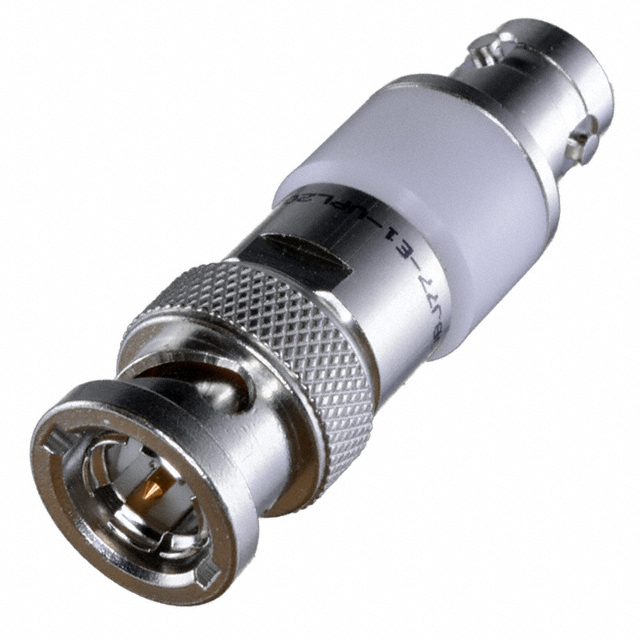

ADBJ77-E1-PL20

Active

Cinch Connectivity Solutions Trompeter

CONN ADAPT BNC PLUG TO TRB JACK

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN ADAPT BNC PLUG TO TRB JACK

Technical Specifications

Parameters and characteristics for this part

Specification	ADBJ77-E1-PL20

Adapter Series	BNC to TRB Twinaxial/Triaxial
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	TRB Twinaxial/Triaxial Jack, Female Socket
Fastening Type	Bayonet Lock
Features	Three Lug
Frequency - Max [Max]	500 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Body Material	Frequency - Max [Max]	Impedance	Features	Mounting Type	Conversion Type	Fastening Type	Adapter Type	Convert From (Adapter End)	Style	Body Finish	Adapter Series	Center Contact Plating	Convert To (Adapter End)
Cinch Connectivity Solutions Trompeter ADBJ77-E1-PL20	Brass	500 MHz	50 Ohms	Three Lug	Free Hanging (In-Line)	Between Series	Bayonet Lock	Plug to Jack	BNC Plug Male Pin	Straight	Nickel	BNC to TRB Twinaxial/Triaxial	Gold	TRB Twinaxial/Triaxial Jack Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To TRB Twinaxial/Triaxial Jack, Female Socket 50 Ohms
