282134-75

Active

Amphenol RF

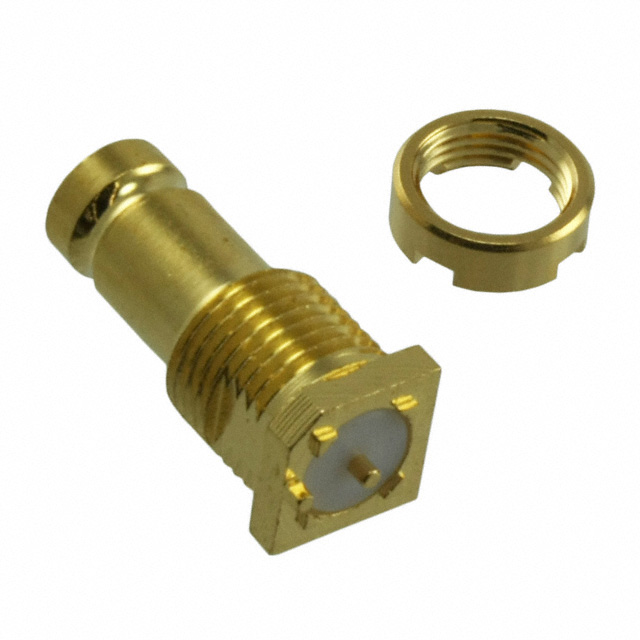

CONN 1.0/2.3 RCPT STR 75 OHM SMD

Search across all available documentation for this part.

Active

Amphenol RF

CONN 1.0/2.3 RCPT STR 75 OHM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	282134-75

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.0/2.3
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	3 GHz
Housing Color	Gold
Impedance	75 Ohms
Includes	1 Nut, 1 Connector
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Surface Mount, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Voltage Rating	Housing Color	Frequency - Max [Max]	Mounting Type	Contact Termination	Connector Type	Connector Style	Number of Ports	Includes	Mounting Feature	Center Contact Plating	Fastening Type	Dielectric Material	Body Finish	Body Material	Mating Cycles	Impedance	Shield Termination	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 282134-75	250 VDC	Gold	3 GHz	Panel Mount Surface Mount	Solder	Female Socket Receptacle	1.0/2.3	1	1 Connector 1 Nut	Bulkhead - Front Side Nut	Gold	Push-Pull	Polytetrafluoroethylene (PTFE)	Gold	Brass	500	75 Ohms	Solder	Beryllium Copper	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.0/2.3 Connector Receptacle, Female Socket 75 Ohms Panel Mount; Surface Mount Solder
