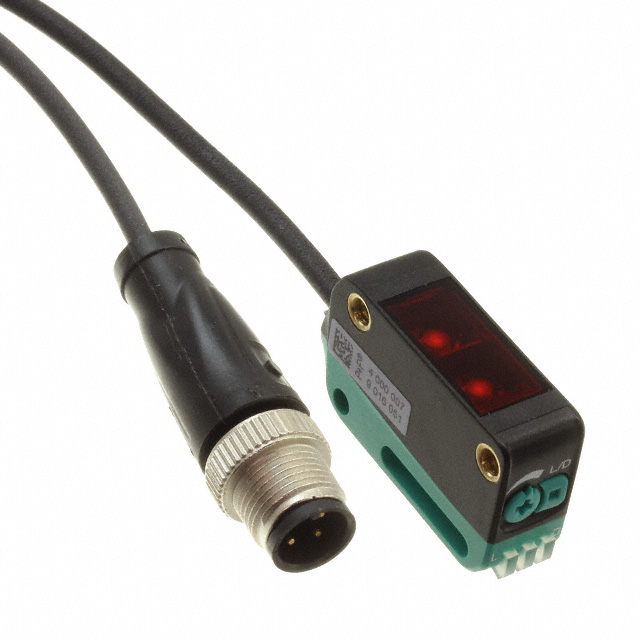

OBT350-R100-2EP-IO-0.3M-V1
ActivePEPPERL+FUCHS
PHOTO SEN 5-350MM BACK SUPPRESS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OBT350-R100-2EP-IO-0.3M-V1
ActivePEPPERL+FUCHS
PHOTO SEN 5-350MM BACK SUPPRESS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OBT350-R100-2EP-IO-0.3M-V1 |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 11.81 in |
| Cable Length | 30 cm |
| Connection Method | Cable with Connector |
| Ingress Protection | IP69K |
| Light Source | Red LED |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Response Time | 1 ms |
| Sensing Distance [Max] | 13.78 " |
| Sensing Distance [Max] | 350 mm |
| Sensing Distance [Min] | 0.197 in |
| Sensing Distance [Min] | 5 mm |
| Sensing Method | Diffuse |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 154.99 | |
| 10 | $ 140.46 | |||
| 25 | $ 135.62 | |||
Description
General part information
OBT350 Series
Diffuse Optical Sensor 0.197" ~ 13.780" (5mm ~ 350mm) NPN - Dark-ON/Light-ON - Selectable
