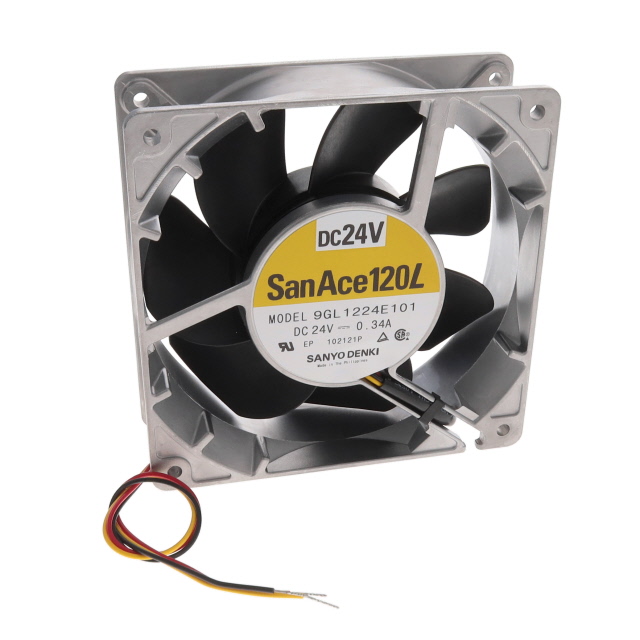

9GL1224E101

Active

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System Long Life Fan Rotor Balancing +1

9GL1224E101

Active

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsNumbering System Long Life Fan Rotor Balancing +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9GL1224E101

Air Flow	118 CFM
Air Flow	3.3 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.34 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Lifetime @ Temp.	80000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	46 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	8.16 W
RPM	3100 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	100 Pa
Static Pressure	0.401 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Weight	370.13 g
Weight	0.816 lb
Width [y]	38 mm

9GL1224 Series

Part	Approval Agency	Material - Blade	RPM	Power (Watts)	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Air Flow	Static Pressure	Static Pressure	Size / Dimension [y]	Size / Dimension [x]	Termination	Features	Bearing Type	Width [y]	Lifetime @ Temp.	Voltage - Rated	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Weight	Weight	Fan Type	Current Rating (Amps)
Sanyo Denki America Inc. 9GL1224F101	CSA TUV UL	Plastic	2280 RPM	3.84 W	36 dB	-20 °C	70 °C	-20 C	70 °C	87 CFM	2.44 m³/min	0.218 in H2O	54.3 Pa	119 mm	119 mm	3 Wire Leads	Speed Sensor (Tach)	Ball	38 mm	100000 Hrs	24 VDC	27.6 VDC	14 VDC	Aluminum	370.13 g	0.816 lb	Tubeaxial
Sanyo Denki America Inc. 9GL1224H102	CSA TUV UL	Plastic	2600 RPM	5.28 W	39 dB(A)	-20 °C	70 °C	-20 C	70 °C			0.283 in H2O	70.5 Pa	119 mm	119 mm	2 Wire Leads		Ball	38 mm	100000 Hrs	24 VDC	27.6 VDC	14 VDC	Aluminum	370.13 g	0.816 lb	Tubeaxial	0.22 A
Sanyo Denki America Inc. 9GL1224F102	CSA TUV UL	Plastic	2280 RPM	3.84 W	36 dB	-20 °C	70 °C	-20 C	70 °C	87 CFM	2.44 m³/min	0.218 in H2O	54.3 Pa	119 mm	119 mm	2 Wire Leads		Ball	38 mm	100000 Hrs	24 VDC	27.6 VDC	14 VDC	Aluminum	370.13 g	0.816 lb	Tubeaxial
Sanyo Denki America Inc. 9GL1224F1D01	CSA TUV UL	Plastic	2280 RPM	3.84 W	36 dB	-20 °C	70 °C	-20 C	70 °C	87 CFM	2.44 m³/min	0.218 in H2O	54.3 Pa	119 mm	119 mm	3 Wire Leads	Locked Rotor Sensor	Ball	38 mm	100000 Hrs	24 VDC	27.6 VDC	14 VDC	Aluminum	370.13 g	0.816 lb	Tubeaxial
Sanyo Denki America Inc. 9GL1224E1D01	CSA TUV UL	Plastic	3100 RPM	8.16 W	46 dB(A)	-20 °C	70 °C	-20 C	70 °C	118 CFM	3.3 m³/min	0.401 in H2O	100 Pa	119 mm	119 mm	3 Wire Leads	Locked Rotor Sensor	Ball	38 mm	80000 Hrs	24 VDC			Aluminum	370.13 g	0.816 lb	Tubeaxial	0.34 A
Sanyo Denki America Inc. 9GL1224M1D01	CSA TUV UL	Plastic	1950 RPM	2.64 W	32 dB	-20 °C	70 °C	-20 C	70 °C	74 CFM	2.07 mł/min	0.159 in H2O	39.6 Pa	120 mm	120 mm	3 Wire Leads	Locked Rotor Sensor	Ball	38 mm	100000 Hrs	24 VDC	27.6 VDC	14 VDC	Aluminum	370.13 g	0.816 lb	Tubeaxial	110 mA
Sanyo Denki America Inc. 9GL1224M101	CSA TUV UL	Plastic	1950 RPM	2.64 W	32 dB	-20 °C	70 °C	-20 C	70 °C	74 CFM	2.07 mł/min	0.159 in H2O	39.6 Pa	119 mm	119 mm	3 Wire Leads	Speed Sensor (Tach)	Ball	38 mm	100000 Hrs	24 VDC	27.6 VDC	14 VDC	Aluminum	370.13 g	0.816 lb	Tubeaxial	110 mA
Sanyo Denki America Inc. 9GL1224E102	CSA TUV UL	Plastic	3100 RPM	8.16 W	46 dB(A)	-20 °C	70 °C	-20 C	70 °C	118 CFM	3.3 m³/min	0.401 in H2O	100 Pa	119 mm	119 mm	2 Wire Leads		Ball	38 mm	80000 Hrs	24 VDC			Aluminum	370.13 g	0.816 lb	Tubeaxial	0.34 A
Sanyo Denki America Inc. 9GL1224E101	CSA TUV UL	Plastic	3100 RPM	8.16 W	46 dB(A)	-20 °C	70 °C	-20 C	70 °C	118 CFM	3.3 m³/min	0.401 in H2O	100 Pa	119 mm	119 mm	3 Wire Leads	Speed Sensor (Tach)	Ball	38 mm	80000 Hrs	24 VDC			Aluminum	370.13 g	0.816 lb	Tubeaxial	0.34 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 27.91
		21	$ 25.49
		42	$ 24.52
		63	$ 22.91
		105	$ 21.13
		252	$ 20.81

Description

General part information

9GL1224 Series

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 118.0 CFM (3.30mł/min) 3 Wire Leads
