SV2220BB227M250LLW-10R

Active

Knowles Johanson Manufacturing

CAP CER 220UF 25V X7R SMD

Search across all available documentation for this part.

Active

Knowles Johanson Manufacturing

CAP CER 220UF 25V X7R SMD

Technical Specifications

Parameters and characteristics for this part

Part	Tolerance	Voltage - Rated	Capacitance	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Lead Style	Lead Spacing	Lead Spacing	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Size / Dimension [y]	Package / Case
Knowles Johanson Manufacturing SV2220BB686M250LLW-3	20 %	25 VDC	68 µF	7.62 mm	0.3 in	7.62 mm	0.374 in	9.5 mm	0.3 "	MLCC Surface Mount	L-Lead	0.1 in	2.54 mm	SMPS Filtering	-55 °C	125 °C	X7R
Knowles Johanson Manufacturing SV2220BB146M101LLW-3R	20 %	100 V	14 µF	7.62 mm	0.3 in	7.62 mm	0.374 in	9.5 mm	0.3 "	MLCC Surface Mount	L-Lead	0.1 in	2.54 mm	SMPS Filtering	-55 °C	125 °C	X7R
Knowles Johanson Manufacturing SV2220BB227M250LLW-10R	20 %	25 VDC	220 µF	7.62 mm	0.3 in		1.075 "	27.3 mm	0.3 "	MLCC Surface Mount	L-Lead	0.1 in	2.54 mm	SMPS Filtering	-55 °C	125 °C	X7R	7.62 mm	Stacked SMD 10 L-Lead
Knowles Johanson Manufacturing SV2220BB276M500LLW-3R	20 %	50 VDC	27 µF	7.62 mm	0.3 in	7.62 mm	0.374 in	9.5 mm	0.3 "	MLCC Surface Mount	L-Lead	0.1 in	2.54 mm	SMPS Filtering	-55 °C	125 °C	X7R

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

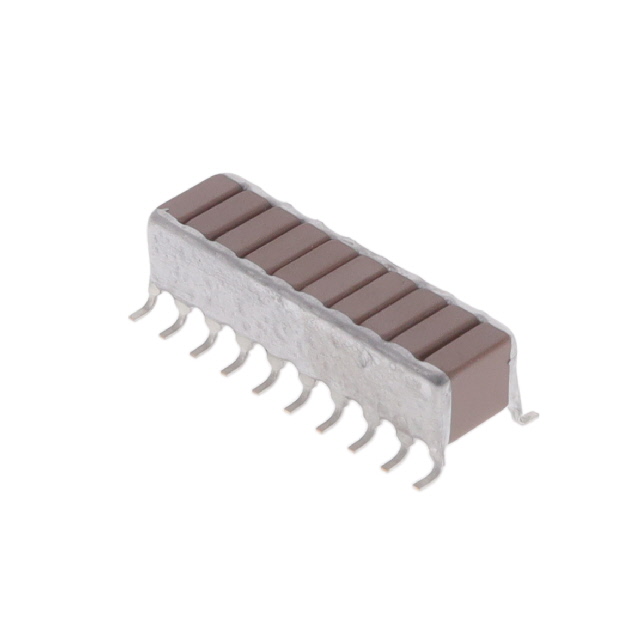

220 µF ±20% 25V Ceramic Capacitor X7R Stacked SMD, 10 L-Lead

Technical documentation and resources

No documents available
