05S107-P00S3

Active

Rosenberger

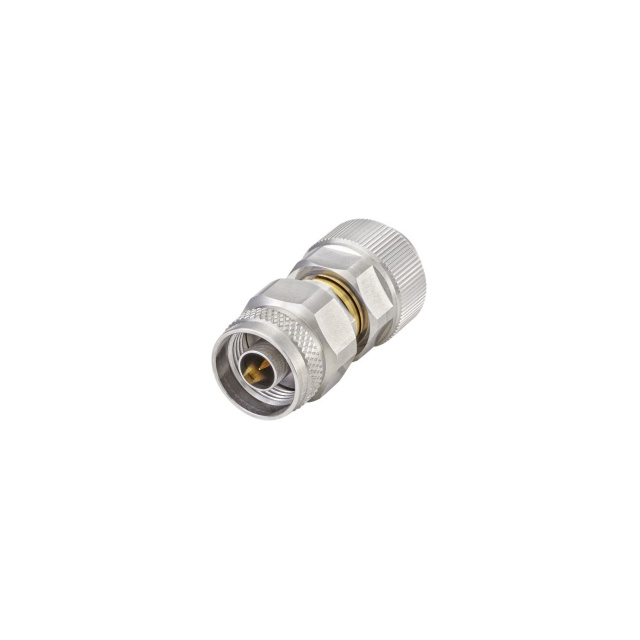

PRECISION N TYPE ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION N TYPE ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	05S107-P00S3

Adapter Series	RJC-N to RJC-7
Body Finish	Gold
Body Material	Beryllium Copper, Stainless Steel
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Non-Gendered
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	Non-Gendered
Convert To (Adapter End)	7 mm
Dielectric Material	Polyphenylene Ether (PPE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Insertion Loss	0.34 dB
Mating Cycles	5000
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Center Gender	Adapter Series	Dielectric Material	Impedance	Convert To (Adapter End)	Convert To (Adapter End)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Style	Body Finish	Center Contact Plating	Convert From (Adapter End)	Insertion Loss	Conversion Type	Mating Cycles	Body Material	Frequency - Max [Max]
Rosenberger 05S107-P00S3	Male to Non-Gendered	RJC-N to RJC-7	Polyphenylene Ether (PPE)	50 Ohms	Non-Gendered	7 mm	Free Hanging (In-Line)	85 °C	-40 °C	Beryllium Copper Brass	Straight	Gold	Gold	N Plug Male Pin	0.34 dB	Between Series	5000	Beryllium Copper Stainless Steel	18 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 539.22

General part information

Adapter Coaxial Connector N Plug, Male Pin To 7mm, Non-Gendered 50 Ohms
