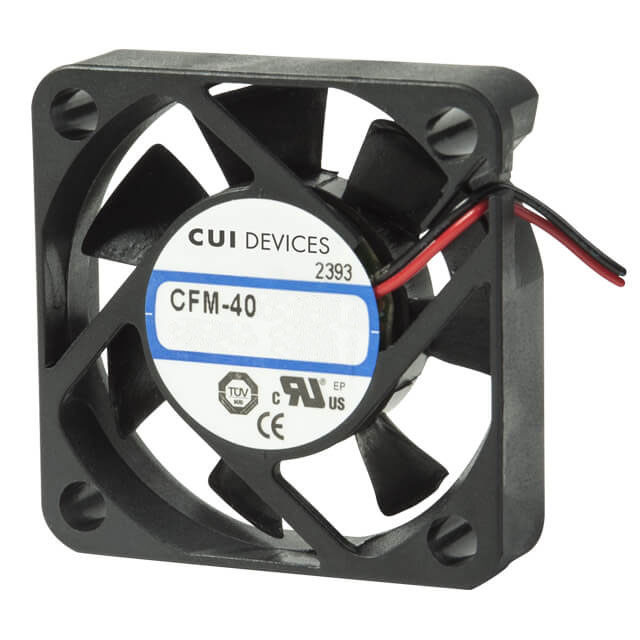

CFM-4010-03-10

Active

CUI Devices

FAN AXIAL 40X10.6MM 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFM-4010-03-10

Active

CUI Devices

FAN AXIAL 40X10.6MM 5VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFM-4010-03-10

Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	37 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.2 W
RPM	8300 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	72.2 Pa
Static Pressure	0.29 in H2O
Termination	2 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4 VDC
Weight	14.06 g
Weight	0.031 lb

CFM-4010 Series

Part	Width [y]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Voltage - Rated	Current Rating (Amps)	Approval Agency	Voltage Range [Min]	Voltage Range [Max]	Features	Termination	Material - Blade	Noise	Static Pressure	Static Pressure	Weight	Weight	Air Flow	Air Flow	Lifetime @ Temp.	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Fan Type	Bearing Type
CUI Devices CFM-4010V-185-314-20	10 mm	40 mm	Square	40 mm	12 VDC	101 mA	CE cURus TUV	4.5 V	13.8 VDC	Auto Restart Speed Sensor (Tach)	3 Wire Leads	Polybutylene Terephthalate (PBT)	31.4 dB(A)	0.25 in H2O	62.3 Pa	0.034 lb	15.42 g	0.277 m³/min	9.9 CFM	70000 Hrs	1.22 W	70 °C	70 °C	-10 °C	-10 °C	8500 RPM	Tubeaxial
CUI Devices CFM-4010V-158-206-20	10 mm	40 mm	Square	40 mm	12 VDC	48 mA	CE cURus TUV	6 VDC	13.8 VDC	Auto Restart Speed Sensor (Tach)	3 Wire Leads	Polybutylene Terephthalate (PBT)	20.6 dB(A)	0.12 in H2O	29.9 Pa	0.034 lb	15.42 g	0.196 mł/min	7 CFM	70000 Hrs	0.58 W	70 °C	70 °C	-10 °C	-10 °C	5800 RPM	Tubeaxial
CUI Devices CFM-4010V-170-273-20	10 mm	40 mm	Square	40 mm	12 VDC	0.059 A	CE cURus TUV	4.5 V	13.8 VDC	Auto Restart Speed Sensor (Tach)	3 Wire Leads	Polybutylene Terephthalate (PBT)	27.3 dB(A)	0.19 in H2O	47.3 Pa	0.034 lb	15.42 g	0.224 mł/min	8 CFM	70000 Hrs	710 mW	70 °C	70 °C	-10 °C	-10 °C	7000 RPM	Tubeaxial
CUI Devices CFM-4010V-185-314	10 mm	40 mm	Square	40 mm	12 VDC	101 mA	CE cURus TUV	4.5 V	13.8 VDC	Auto Restart	2 Wire Leads	Polybutylene Terephthalate (PBT)	31.4 dB(A)	0.25 in H2O	62.3 Pa	0.034 lb	15.42 g	0.277 m³/min	9.9 CFM	70000 Hrs	1.22 W	70 °C	70 °C	-10 °C	-10 °C	8500 RPM	Tubeaxial
CUI Devices CFM-4010-13-20		40 mm	Square	40 mm	12 VDC	100 mA	CE cURus TUV	6 VDC	13.8 VDC	Auto Restart Speed Sensor (Tach)	3 Wire Leads	Polybutylene Terephthalate (PBT)	37 dB	0.29 in H2O	72.2 Pa	0.032 lb	14.51 g	0.28 mł/min	10 CFM	70000 Hrs	1.56 W	70 °C	70 °C	-10 °C	-10 °C	8300 RPM	Tubeaxial	Ball
CUI Devices CFM-4010-13-10		40 mm	Square	40 mm	12 VDC	100 mA	CE cURus TUV	6 VDC	13.8 VDC	Auto Restart	2 Wire Leads	Polybutylene Terephthalate (PBT)	37 dB	0.29 in H2O	72.2 Pa	0.032 lb	14.51 g			70000 Hrs	1.56 W	70 °C	70 °C	-10 °C	-10 °C	8300 RPM	Tubeaxial	Ball
CUI Devices CFM-4010-13-22		40 mm	Square	40 mm	12 VDC	100 mA	CE cURus TUV	6 VDC	13.8 VDC	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	Polybutylene Terephthalate (PBT)	37 dB	0.29 in H2O	72.2 Pa	0.032 lb	14.51 g	0.28 mł/min	10 CFM	70000 Hrs	1.56 W	70 °C	70 °C	-10 °C	-10 °C	8300 RPM	Tubeaxial	Ball
CUI Devices CFM-4010V-070-273-11	10 mm	40 mm	Square	40 mm	5 V	0.157 A	CE cURus TUV	3.5 VDC	6 VDC	Auto Restart Locked Rotor Sensor	3 Wire Leads	Polybutylene Terephthalate (PBT)	27.3 dB(A)	0.19 in H2O	47.3 Pa	0.034 lb	15.42 g	0.224 mł/min	8 CFM	70000 Hrs	790 mW	70 °C	70 °C	-10 °C	-10 °C	7000 RPM	Tubeaxial
CUI Devices CFM-4010-03-10		40 mm	Square	40 mm	5 V		CE cURus TUV	4 VDC	5.5 V	Auto Restart	2 Wire Leads	Polybutylene Terephthalate (PBT)	37 dB	0.29 in H2O	72.2 Pa	0.031 lb	14.06 g			70000 Hrs	1.2 W	70 °C	70 °C	-10 °C	-10 °C	8300 RPM	Tubeaxial	Ball
CUI Devices CFM-4010V-150-157	10 mm	40 mm	Square	40 mm	12 VDC	0.038 A	CE cURus TUV	4.5 V	13.8 VDC	Auto Restart	2 Wire Leads	Polybutylene Terephthalate (PBT)	15.7 dB(A)	0.09 in H2O	22.4 Pa	0.034 lb	15.42 g	0.148 m³/min	5.3 CFM	70000 Hrs	460 mW	70 °C	70 °C	-10 °C	-10 °C	5000 RPM	Tubeaxial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.97
		10	$ 9.52
		25	$ 8.95
		50	$ 8.61
		200	$ 7.93
		400	$ 7.42
		600	$ 7.31

Description

General part information

CFM-4010 Series

Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Ball 10.0 CFM (0.280m³/min) 2 Wire Leads
