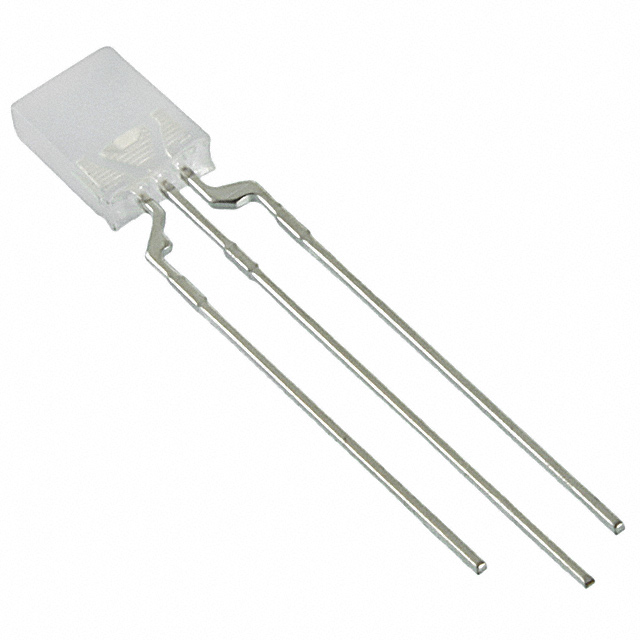

SSL-LX2579IGW
ActiveLumex Opto/Components Inc.
LED GRN/RED DIFF RECT 2X5MM T/H
Deep-Dive with AI
Search across all available documentation for this part.
SSL-LX2579IGW
ActiveLumex Opto/Components Inc.
LED GRN/RED DIFF RECT 2X5MM T/H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSL-LX2579IGW |
|---|---|
| Color | Red, Green |
| Configuration | Common Cathode |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 10.5 mm |
| Lens Color | White |
| Lens Size [x] | 5 mm |
| Lens Size [y] | 2 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 8 mcd |
| Millicandela Rating [custom] | 14 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial - 3 Leads |
| Supplier Device Package | Rectangular 2mmx5mm |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V, 2.1 V |
| Wavelength - Peak | 565 nm, 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.69 | |
| 10 | $ 0.41 | |||
| 100 | $ 0.27 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.20 | |||
| 2000 | $ 0.18 | |||
| 5000 | $ 0.17 | |||
| 10000 | $ 0.16 | |||
| 25000 | $ 0.15 | |||
Description
General part information
SSL-LX2579 Series
Green, Red LED Indication - Discrete 2.1V Green, 2.1V Red Radial - 3 Leads
