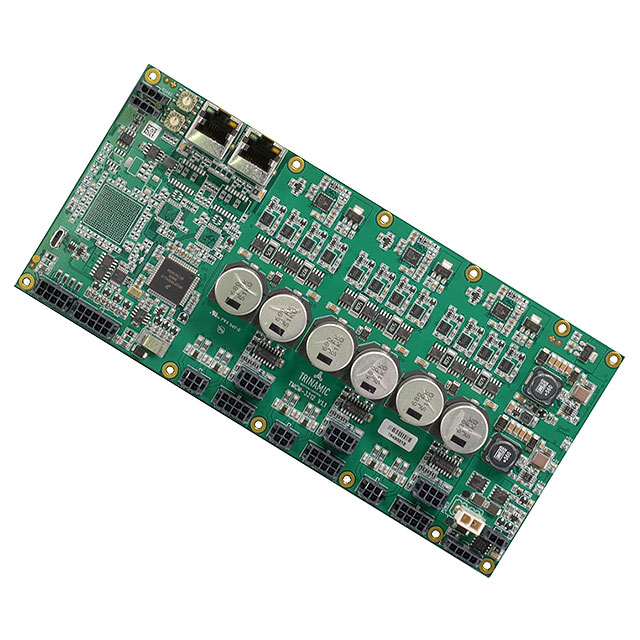

TMCM-3212-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 2.8A 9-52.8V
Deep-Dive with AI
Search across all available documentation for this part.
TMCM-3212-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 2.8A 9-52.8V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCM-3212-TMCL |
|---|---|
| Control / Drive Type | Bipolar, Stepper |
| Current - Output | 2.8 A |
| Interface | CAN, USB, RS-485 |
| Motor Type | Stepper |
| Mounting Type | Chassis Mount |
| Number of Motors | 3 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -30 ░C |
| Type | Board |
| Voltage - Load [Max] | 52.8 V |
| Voltage - Load [Min] | 9 V |
| Voltage - Supply [Max] | 48 V |
| Voltage - Supply [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 494.64 | |
Description
General part information
TMCM-3212 Series
Stepper, Bipolar 24 ~ 48VDC Supply 2.8A 9 ~ 52.8V Load
Documents
Technical documentation and resources
No documents available
