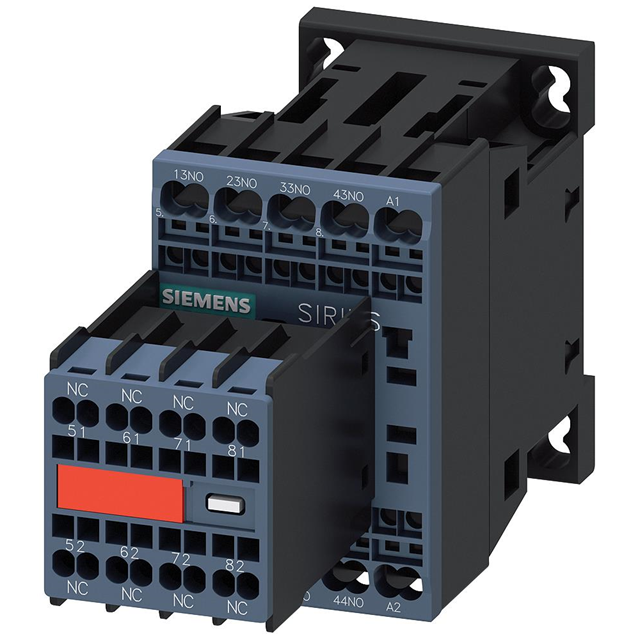

3RH22442BB40

Active

Siemens

CONTACTOR RELAY 4NO+4NC DC 24V S

Search across all available documentation for this part.

Active

Siemens

CONTACTOR RELAY 4NO+4NC DC 24V S

Technical Specifications

Parameters and characteristics for this part

Part	Coil Power	Must Operate Voltage	Coil Voltage	Termination Style	Switching Voltage	Operate Time	Release Time	Features	Contact Rating (Current)	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Coil Current	Coil Resistance
Siemens 3RH22442AP00	37 VA	195.5 VAC	230 VAC	Spring Terminal	690 VAC	33 ms	15 ms	Auxiliary Contacts	10 A	8PST-4NO/4NC (4 Form A 4 Form B)	-25 °C	60 °C	Chassis Mount DIN Rail
Siemens 3RH22442BB40	4 W	19.2 VDC	24 VDC	Spring Terminal				Auxiliary Contacts		3PST-NO (3 Form A)	-25 °C	60 °C	Chassis Mount DIN Rail	166.7 mA	144 Ohms
